Steeda Mustang Competition Front and Rear Sway Bar Kit (2015-2024)

 555 1036
( saved $30.00 )
Typically ships in 2-3 weeks.
Buy Now

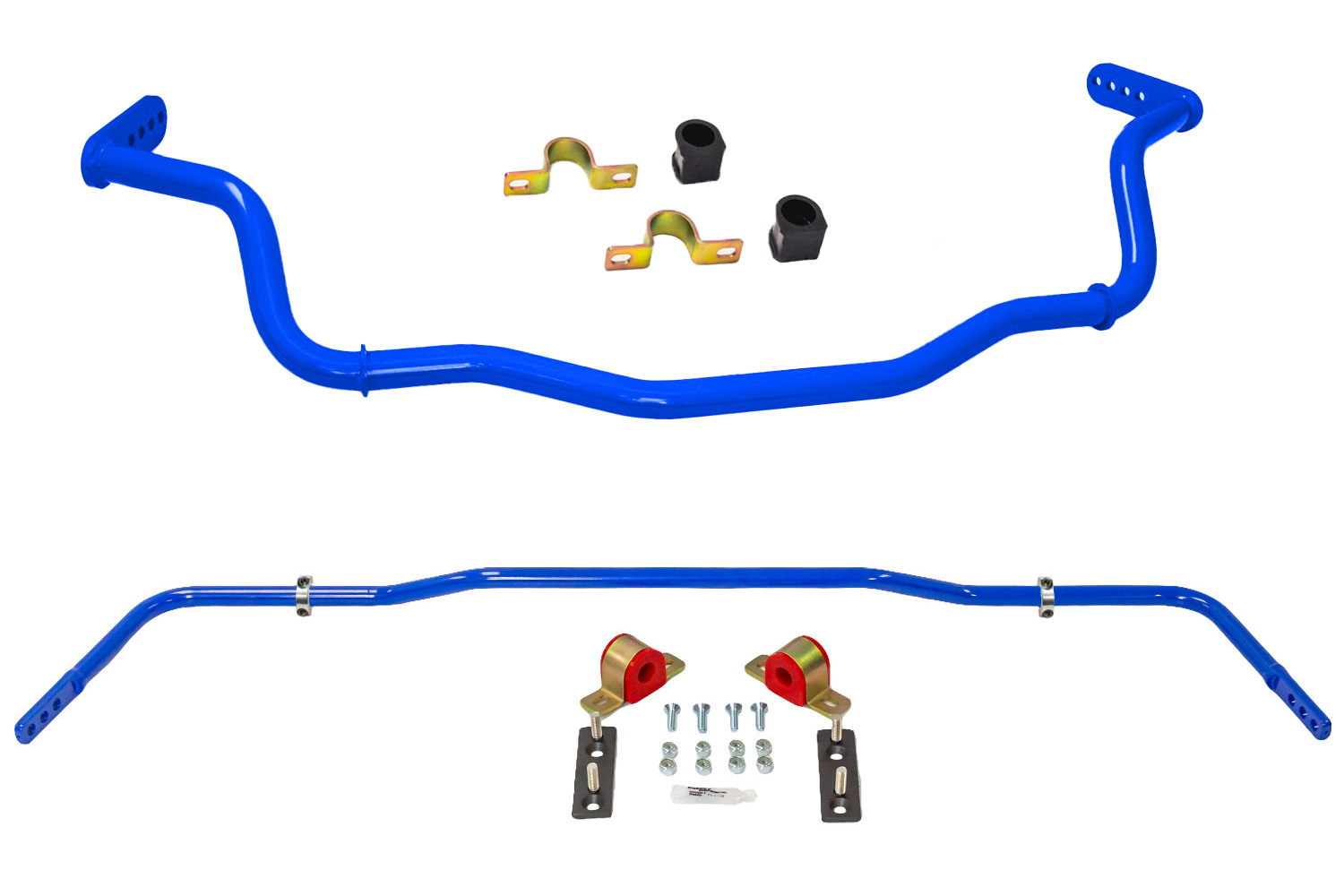

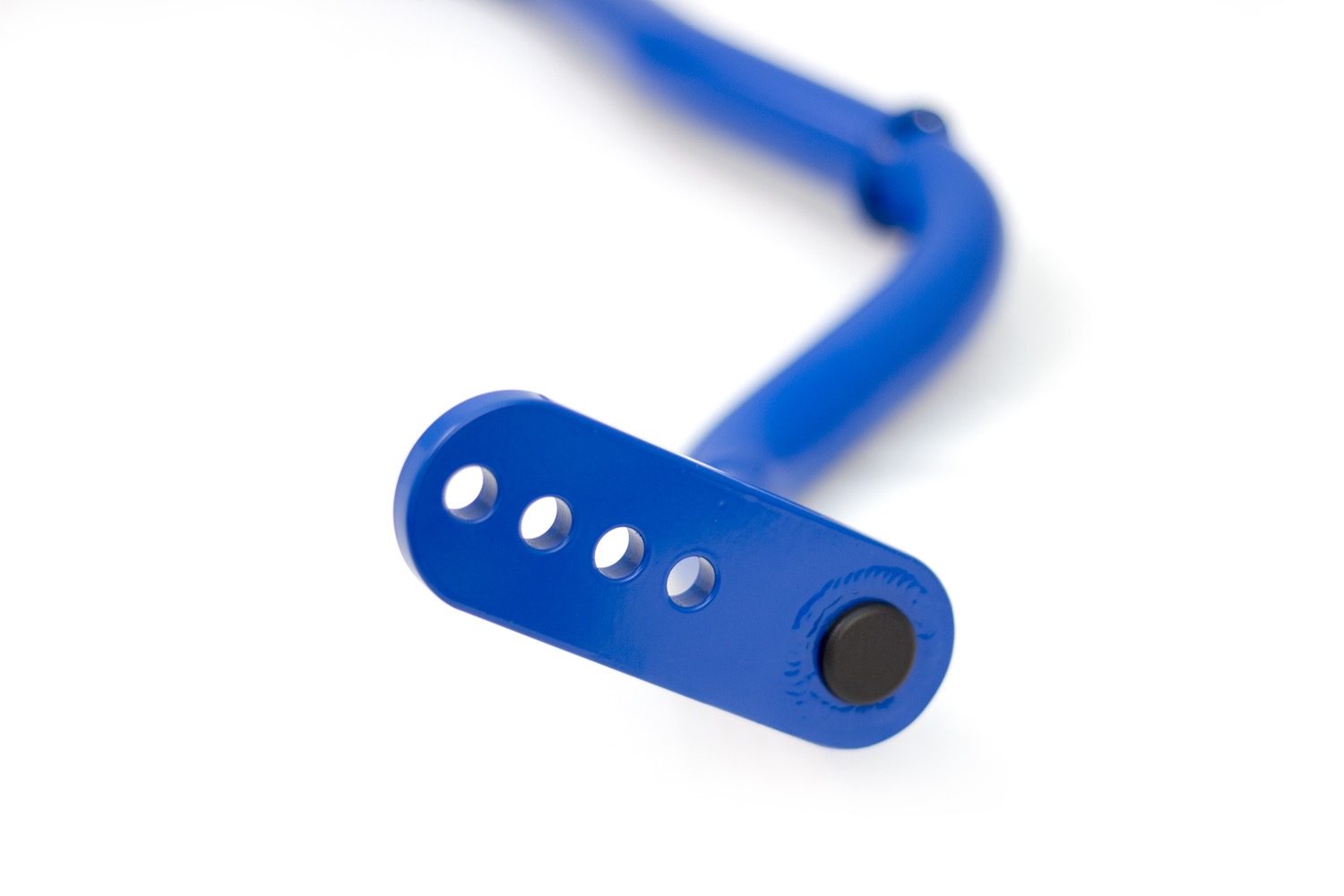

If you have a track or competition-built vehicle, this competition sway bar has been designed to meet your needs. Pairing our 555-1015 front sway bar with our 555-1034 rear sway bar, you get the same combo that we use to dominate the track. Steeda's front sway bar is 42-97% stiffer than the OE Performance Pack sway bar, depending on the hole that you select. The rear sway bar is adjustable, and with a softer rate than any of our other sway bars, this bar gives you the ability to run stiffer springs and other track-purpose parts on the car.

Designed for racing. These sway bars work alongside your track-focused upgrades to maximize performance. The front bar is designed to provide more stable cornering and reduced body roll. The corner exit grip of your S550/S650 Mustang is increased by not lifting the inside rear tire during cornering. Engineered to work with higher spring rates, multi-adjustable shocks, and aerodynamic upgrades (wings). This kit is an excellent addition for both open track and auto-cross events. Installed on our 2024 Mustang GT HPDE build along with our 'Stop The Hop' Handling Ultimate Kit, we achieved over a 2 second improvement in our lap times!

Thoroughly track-tested. Our racing teams have tested this sway bar kit on multiple in-house test vehicles. This goes for our Yellow #20 Race Car, HPDE 2018 Q500, Q350 EcoBoost, and more. After all our testing, both on the track and autocross course, we found that with the stiffer spring rates that our competition-oriented Dual Rate Springs (555-8243, All | 555-8244, GT500) provide, a softer rear bar is necessary to promote corner exit rear grip.

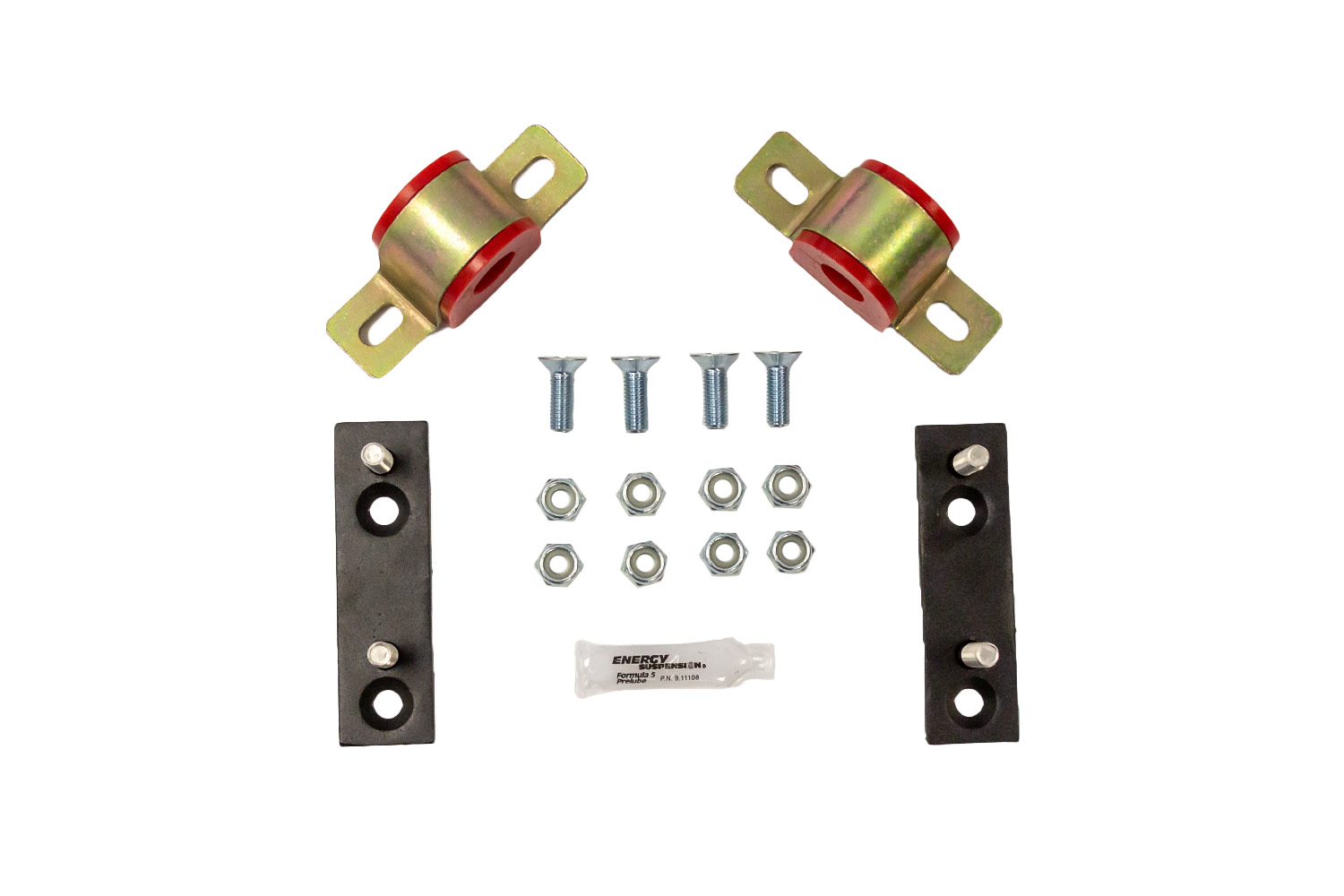

Relocation brackets. The included relocation brackets move the rear sway bar to provide greater clearance between the sway bar, other suspension parts, and brake components. Sway bar geometry is also improved by moving the bar rearward and putting the end links in a more vertical position. This increases the sway bar adjustability range, especially when pairing with adjustable end links. The more vertical position also prevents binding of the end links. End link binding can artificially and inconsistently increase the rate of the sway bar.

S650 Fitment Confirmed

Product Benefits:
  • Designed to work with track-focused parts
  • Adjustable for fine tuning
  • Billet steel machined ends
  • Less prone to fatigue, cracking, unwanted deflection, and failure
  • Up to 97% stiffer than OE Performance Pack front sway bar
  • Up to 39% softer than our standard rear sway bars
  • Helps with corner exit grip
  • Excellent for open track and autocross
  • Improved suspension geometry
  • Includes hardware and rear relocation brackets
  • Our 2024+ HPDE build achieved over a 2-second improvement in lap times when combined with our 'Stop The Hop' Handling Ultimate Kit

Steeda Adjustable Competition Bar vs Base GT OE Rear Sway Bar

Hole 1 Rate Hole 2 Rate Hole 3 Rate
23.6% softer 7.8% softer 13.1% stiffer

Note: Front Sway bar will fit vehicles equipped with MagneRide Suspension but cannot be used at softest setting due to contact with factory ride height sensor.

warningWARNING: California Residents: Cancer and Reproductive Harm;

Installation Difficulty:
Tools Required:
Basic Shop Tools
Estimated Install Time:
(approx.) 2 Hours
Vehicle Fitment:
2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
Vehicle Trim:
Vehicle Trim:
Vehicle Trim:
Vehicle Trim:
Vehicle Trim:
Mach 1
Vehicle Trim:
Vehicle Trim:
Vehicle Trim:
Dark Horse
