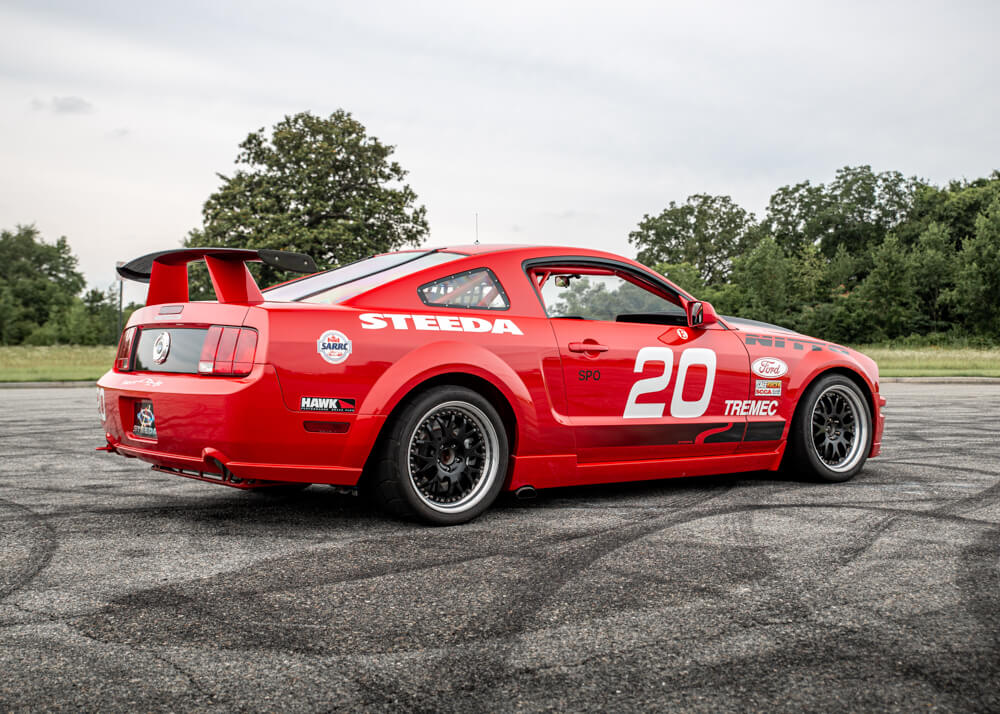

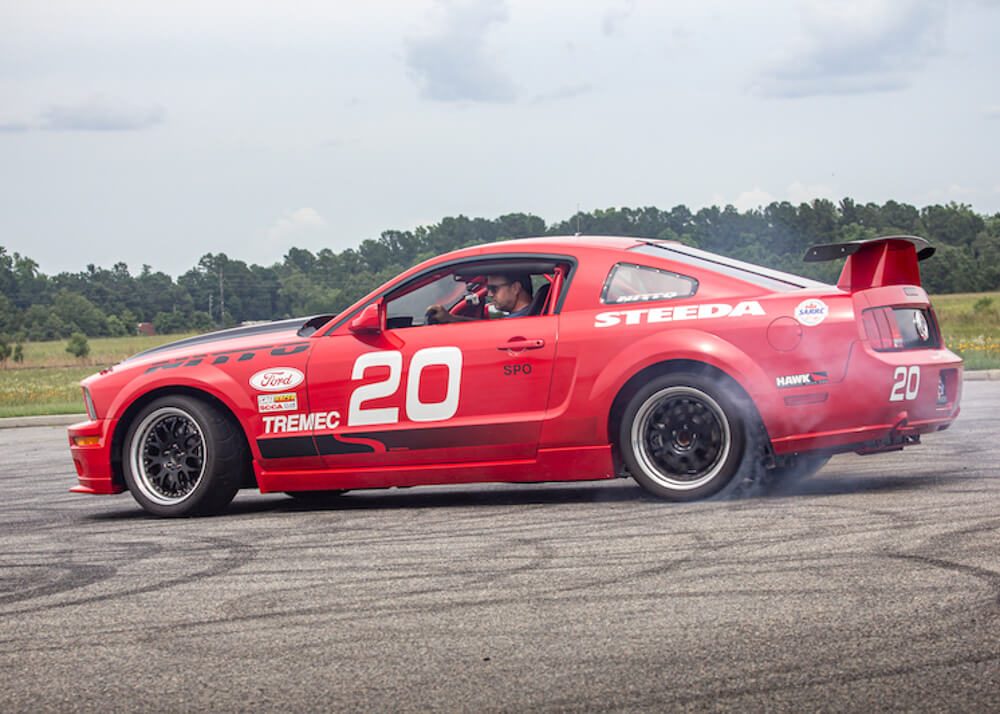

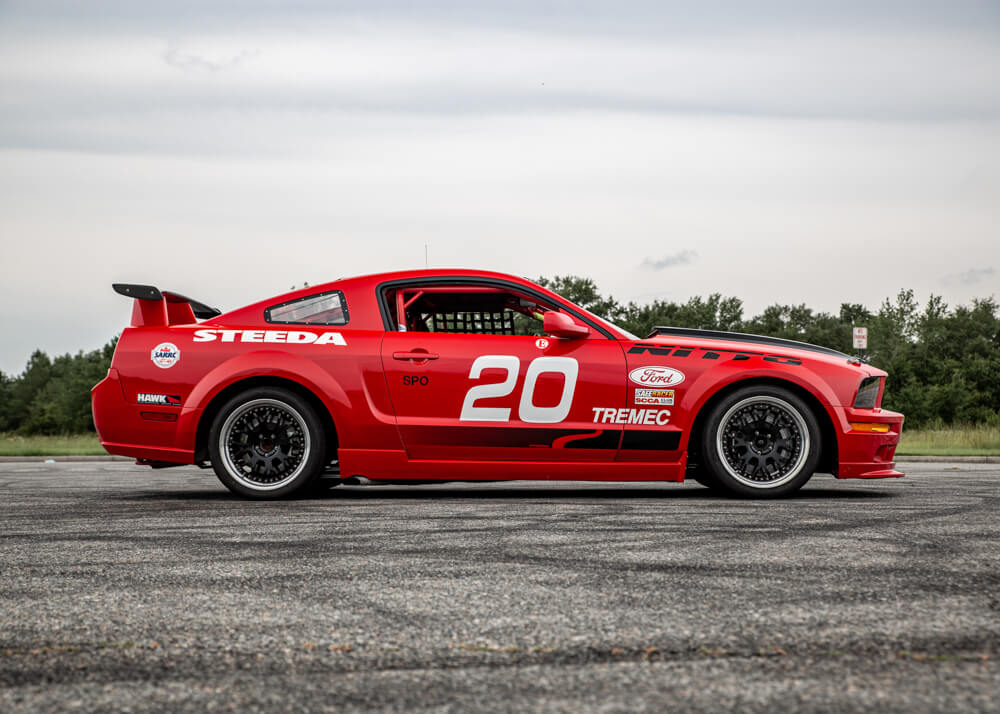

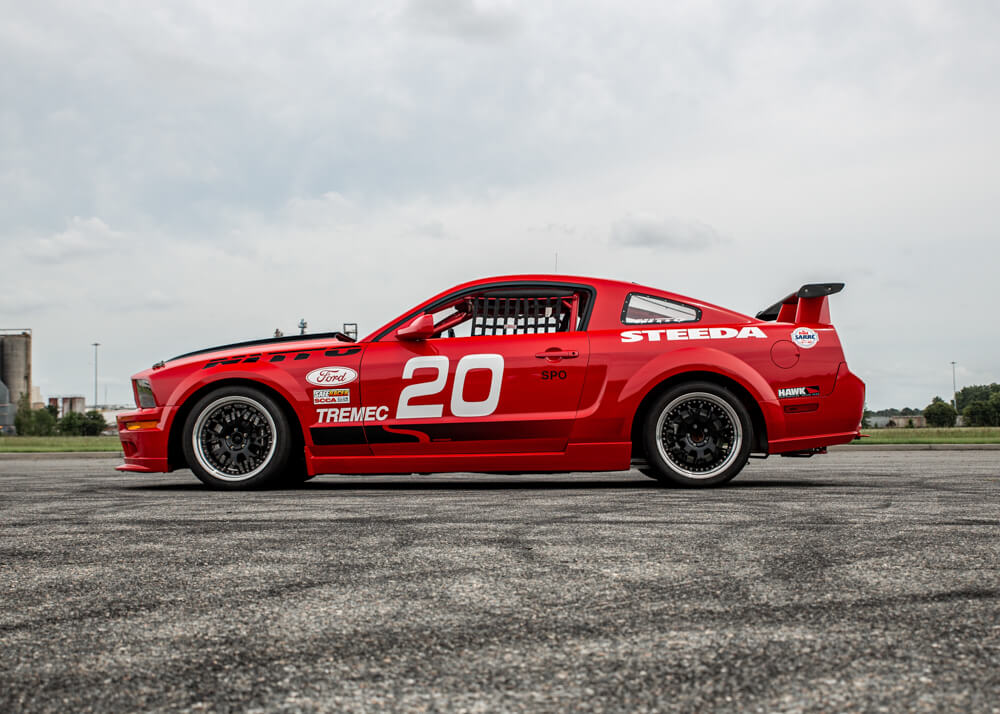

Steeda's 2005 Mustang #20 Race Car Build
This build has played a large part in the development of many S197 parts you see on enthusiast's cars on the road today. This 2005 Mustang #20 Race Car Build was originally bought as a body-in-white to be developed and built into a race car. It was originally built to race competitively in IMSA Grand Sport,and did very well throughout the Southeast!
Still used today for testing of new parts in development, we plan to get this car back out on the racetrack soon to continue to push the limits of our parts and this S197 chassis.
Check out more information below to learn all about this iconic build in Steeda history!
The Build
A build of this caliber is only as good as the sum of its parts. With continual track abuse, every part on this car serves a purpose in standing up against the high pressure conditions track testing throws at a vehicle. Read below to learn about the parts behind this build!
-
From the Factory:
- 4.6L 3V V8
- 5-Speed Manual Transmission
- Body In White
-
- Acid Dipped
- Seam Welded
- Car Weight: 3,500 lbs (with driver)
- Factory ECU, Wiring Harness & ABS System
-
Steeda Powertrain Upgrades:
- Big Bore 302 Cubic Inch Kit For 4.6L 3V Engine

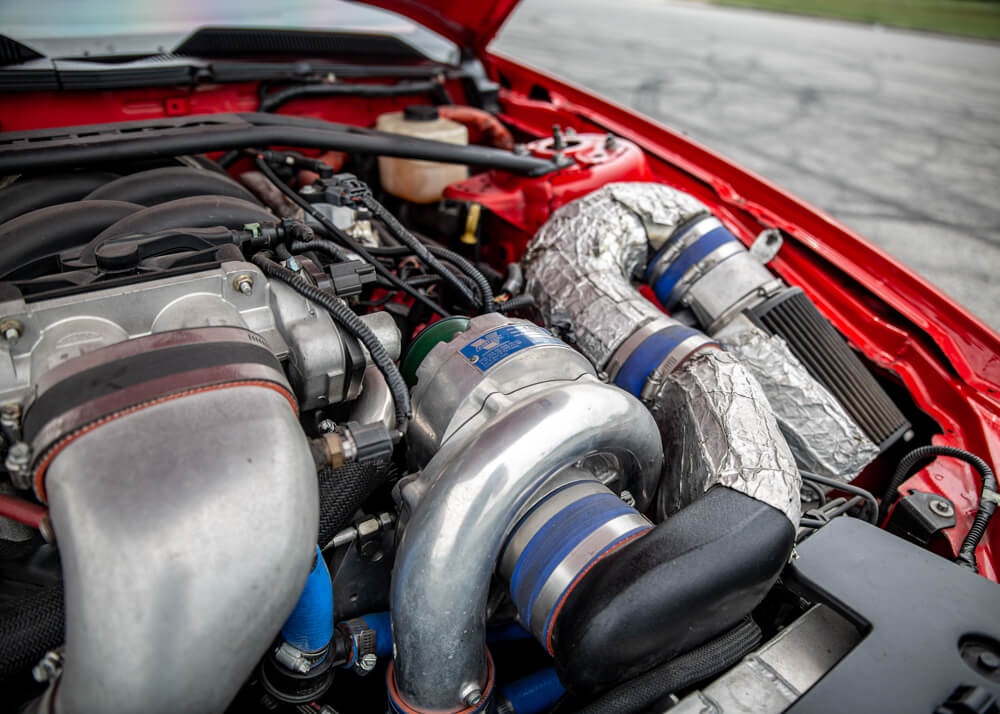

- Vortech V-2 T Supercharger Kit
- Tuned for MS109 Fuel
- Tremec TKO 600 5-Speed Manual Transmission
- Exedy Clutch

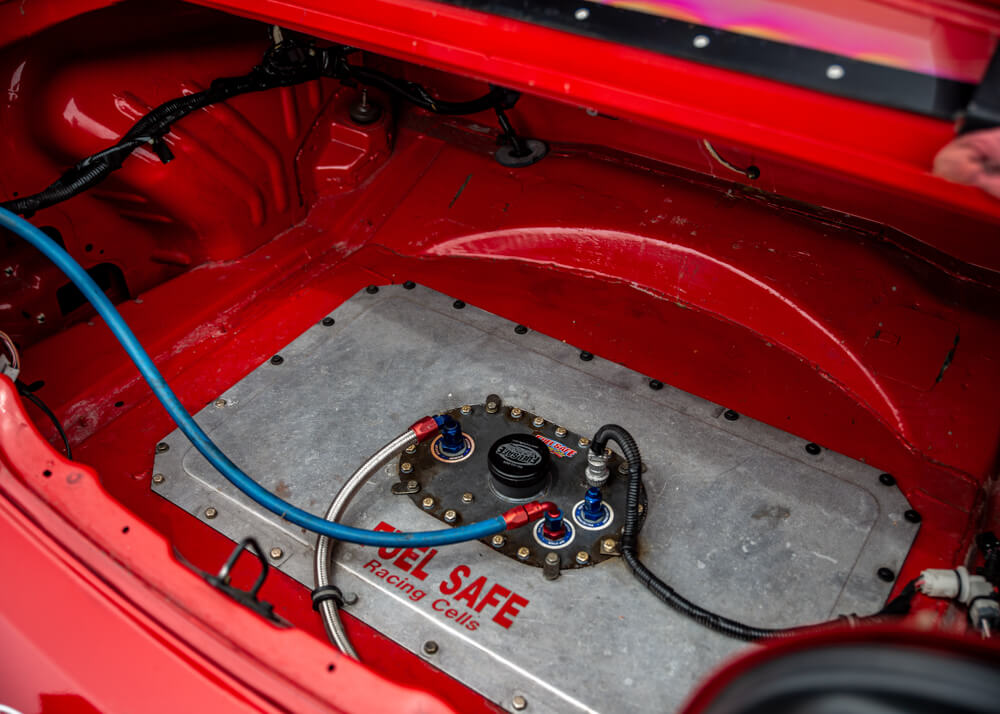

- Fuel Safe Racing Cells Fuel Cell
- Steeda Custom Side Exit Exhaust
- C&R Radiator
- Steeda Custom Intercooler
- Mark Williams Custom Driveshaft
- FR500 Torsen Limited-Slip Differential with 3.55 gears
-
Steeda Suspension & Chassis Upgrades Upgrades:
- Steeda 14" Mustang Front Brake Upgrade Kit
- Steeda Custom Billet Aluminum Brake Cooling Ducts
- Steeda 13" Mustang Rear Brake Upgrade Kit
- SteedaChrome Moly Watts Link

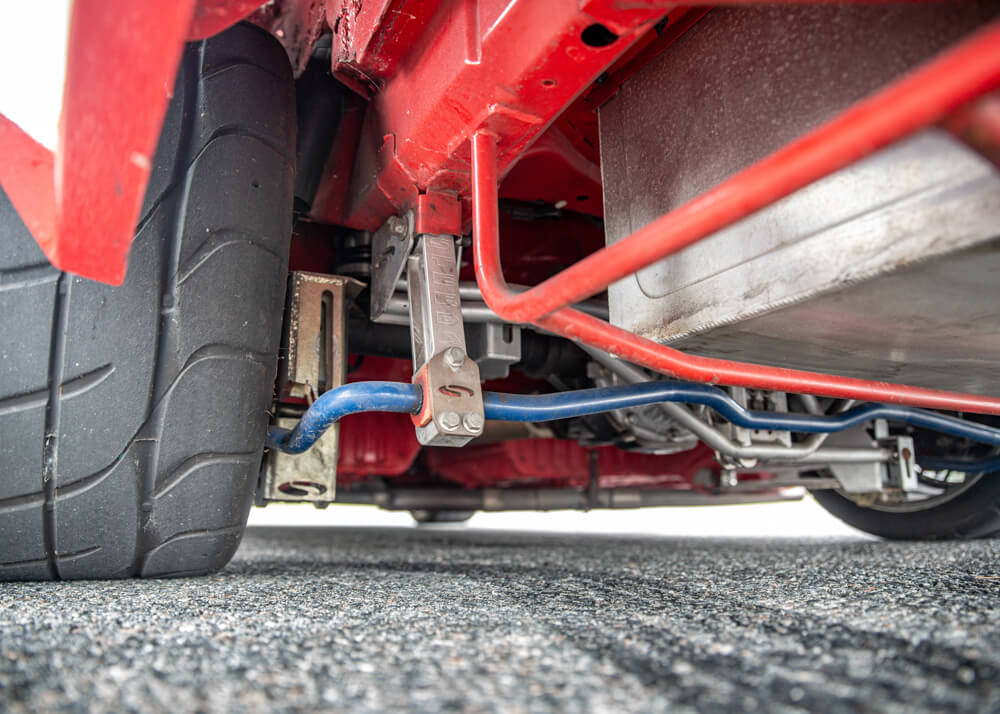

- Steeda Mustang Competition Sway Bar Kit
- Steeda Mustang Billet Rear Lower Control Arms - Poly Ends
- Steeda Mustang Lower Control Arm Relocation Brackets (Welded)
- Ford Performance Competition Front Bushing Kit
- Steeda X11Mustang Ball Joints

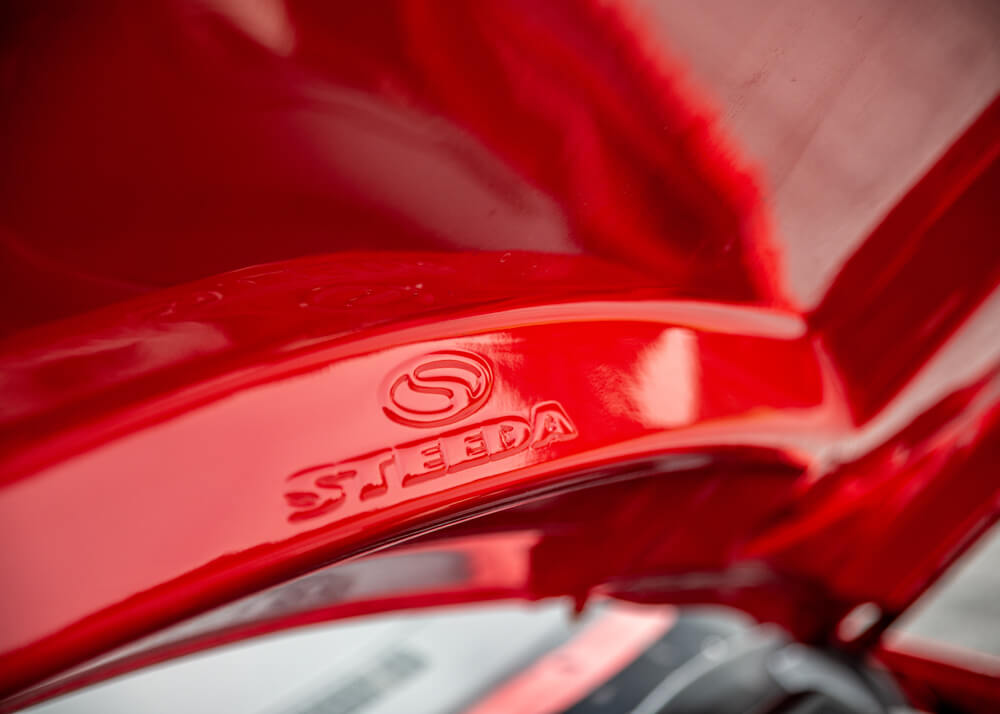

- Steeda Mustang Billet Strut Tower Brace With Cowl Hood
- Tokiko D-Spec Coilovers
- Steeda Competition-specific Spring Rates
- Steeda Tri-Ax Mustang Short Throw Shifter for Tremec 3550 & TKO
- Steeda Mustang Rear Upper Control Arm - Rod End
- Steeda Mustang Upper Chassis Mount For 3rd Link
- Steeda Mustang Lower Control Arm Relocation Brackets (Welded)
- Hawk DTC Brake Pads

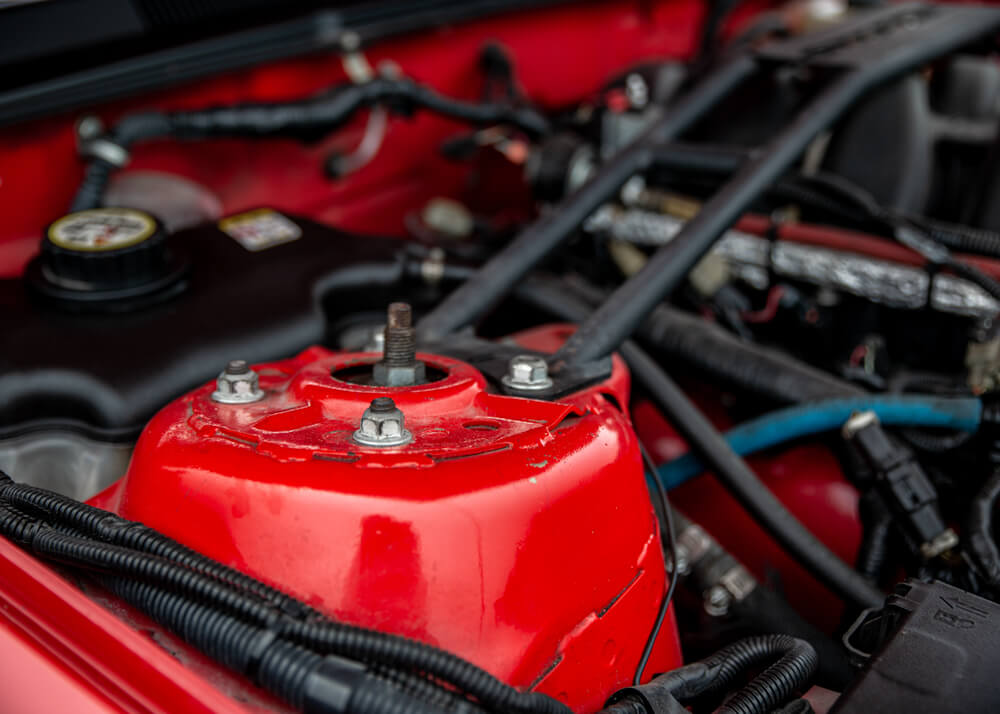

- SteedaCompetition Mustang Adjustable Upper Strut Mounts
- Steeda Double Driveshaft Safety Loop
-
Steeda Exterior/Interior Upgrades:

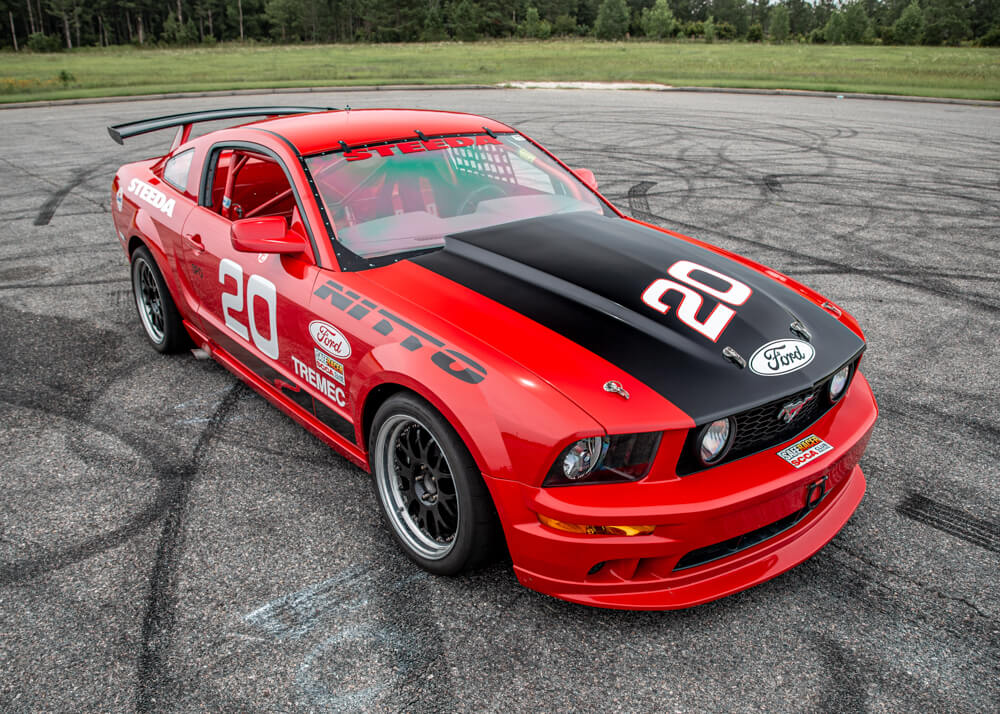

- Steeda Mustang Ultralite Full Cowl Induction Hood
- Steeda Slide Style Captive Mustang Hood Pins
- Steeda Custom Front Fascia With Integrated Brake Cooling Ducts

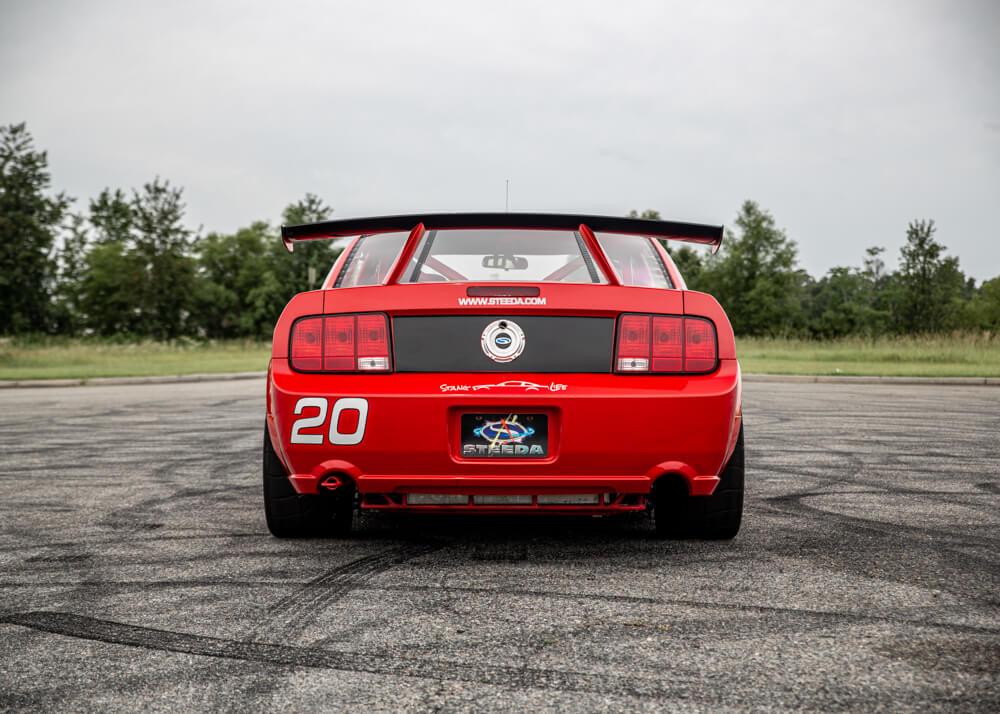

- Steeda Mustang Functional Race Wing
- Factory HID Headlights
- Ford Racing Front Tow Hook
- Steeda Custom Brake Ducts
- Lexan Polycarbonate Windows
- Gutted Interior

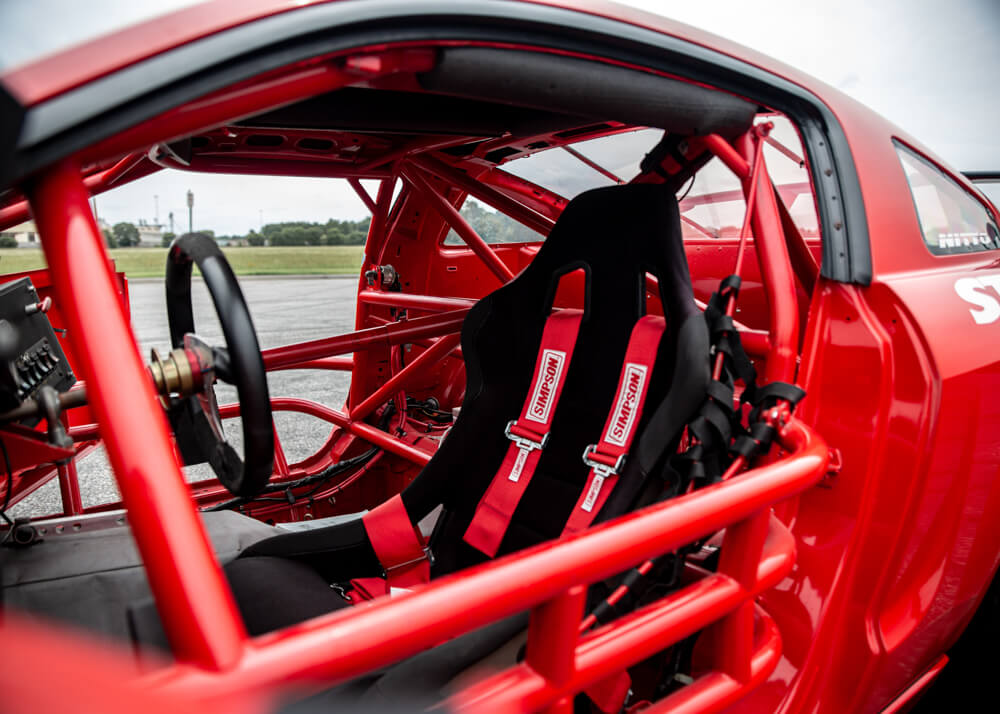

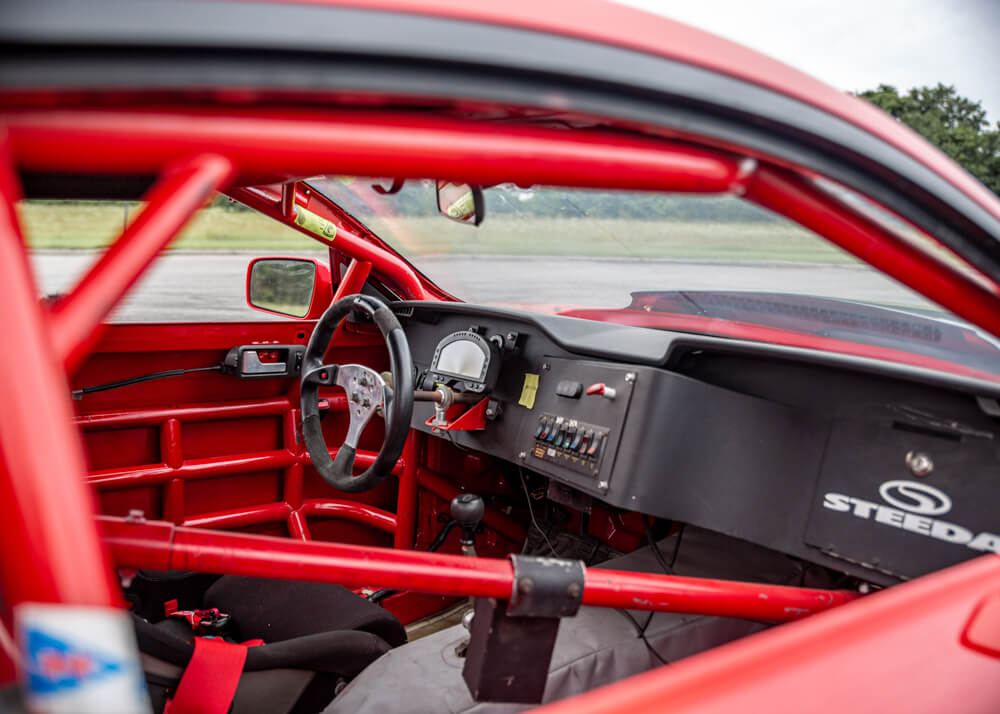

- Steeda Custom Roll Cage

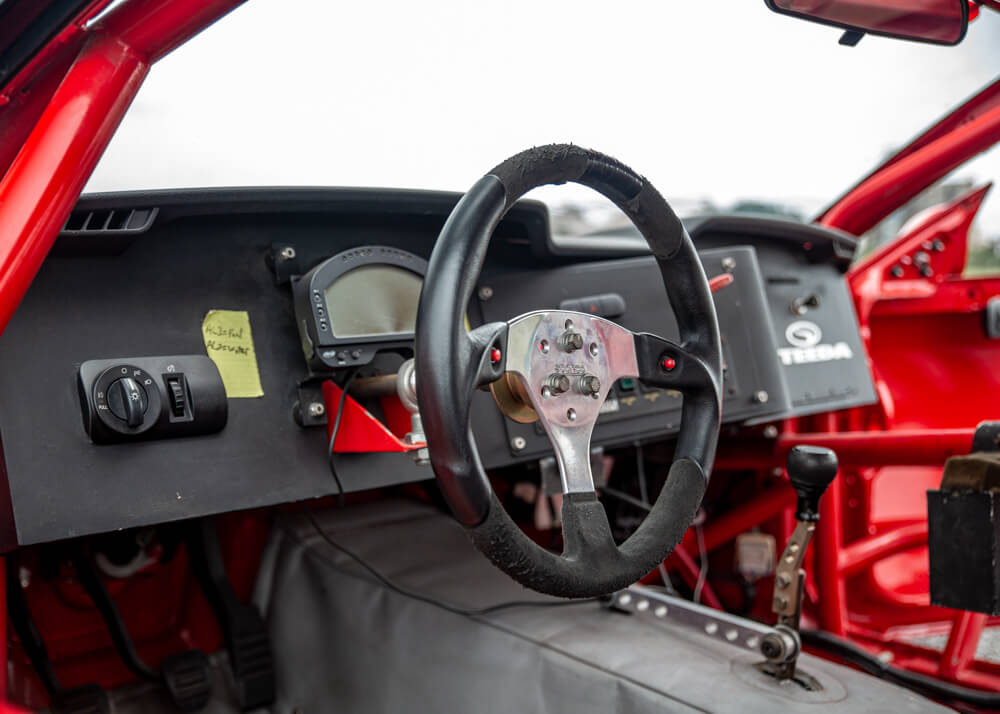

- Sparco Quick-Release Steering Wheel
- Steeda Custom Battery Relocation Kit
- AIM Digital Gauge Cluster
- Steeda Custom Aluminum Lightweight Dashboard
- Simpson Five-Point Racing Harness

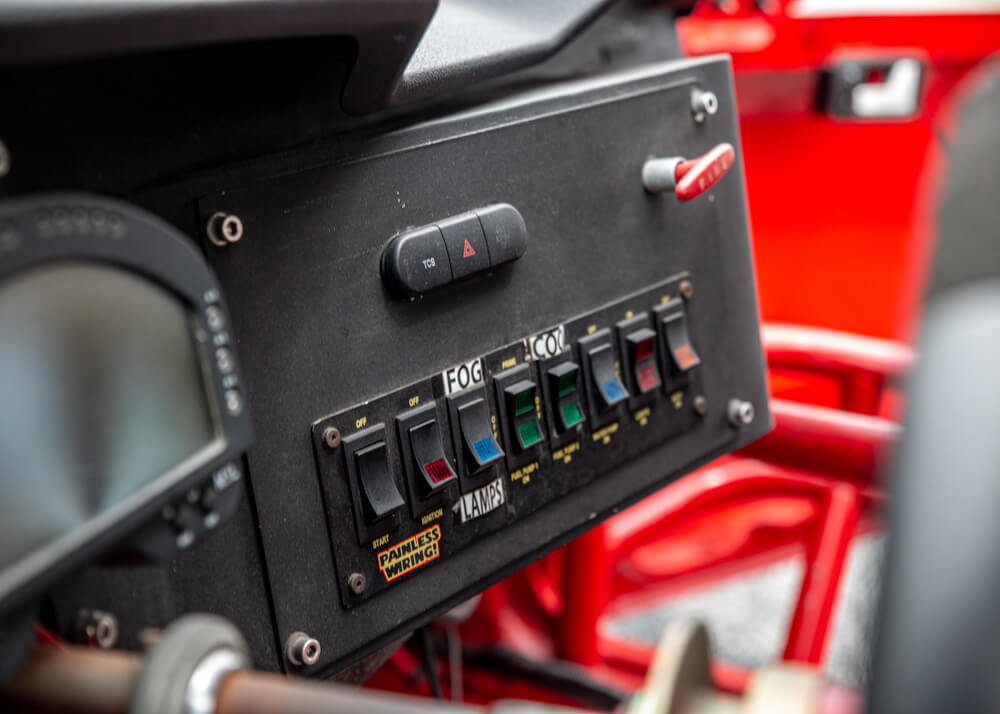

- Painless Wiring Switch Control Panel
- Custom Insulation For Transmission Tunnel
- Custom Trim & Paint Work
-
Steeda Wheel/Tire Upgrades:

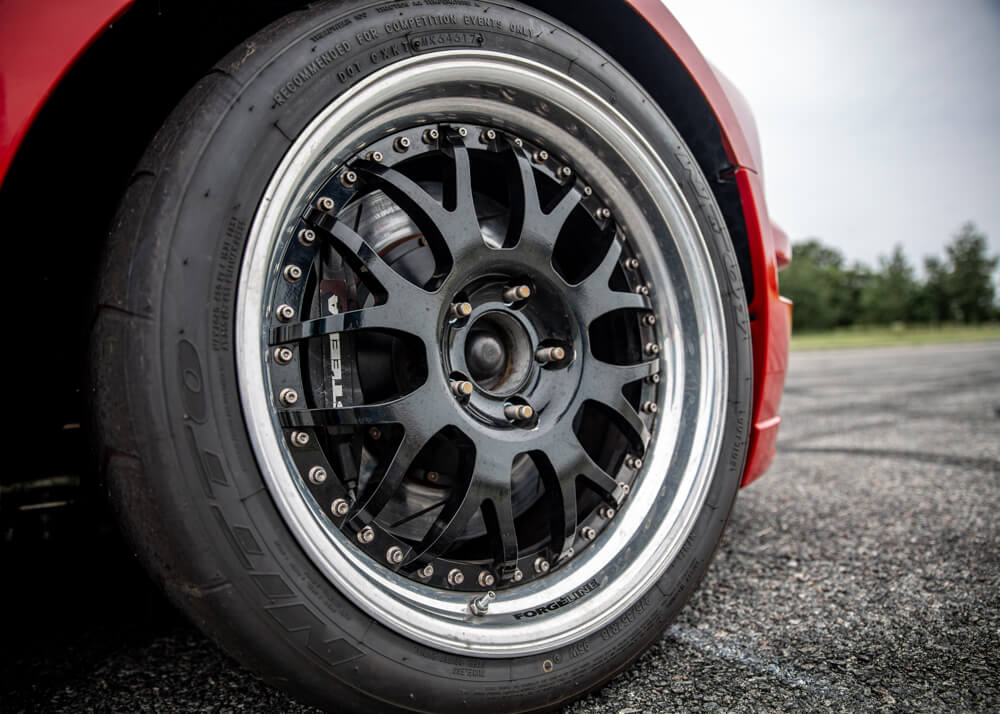

- Forgeline GW3R Wheels (18x10 Front, 18x11 Rear)
- Nitto NT01 Tires (275/35-18 Front, 315/30-18 Rear)
