Already running a Whipple Stage 1 supercharger on your S650 Mustang and want more? This bolt-on upgrade kit converts your existing system to the full Stage 2 configuration without replacing the supercharger, raising output from up to 810 HP and 640 lb-ft to up to 875 HP and 650 lb-ft at the flywheel on 93 octane or higher*.

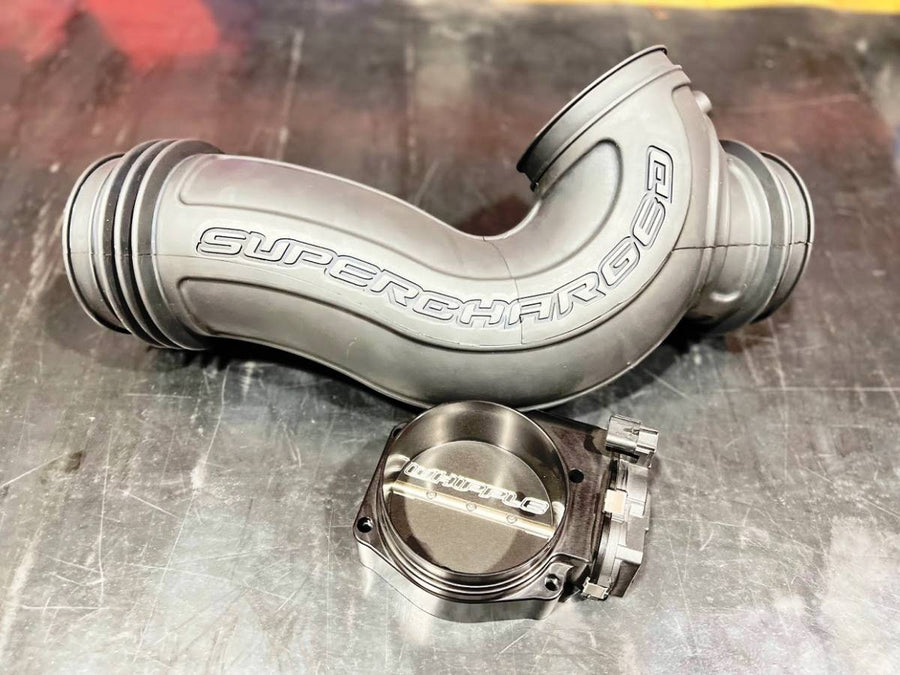

A larger billet throttle body for more airflow. The Stage 1 system uses a single 92mm throttle body, while this Stage 2 upgrade steps up to a billet 112mm throttle body. A larger opening lets your supercharged 5.0L Coyote draw in more air at wide open throttle, which is exactly what a higher boost, higher output combination needs. Billet construction delivers precise machining, a strong and consistent build, and a clean look under the hood.
More boost from a billet pulley. The kit includes a billet 3.75" Whipple supercharger pulley that spins the supercharger faster, adding approximately 1 psi of additional boost over Stage 1. Extra boost means more air and more power, and it is one of the most effective ways to add output from a positive displacement supercharger. Swapping the pulley is a simple, proven change that fits directly into your existing Whipple system.
Updated calibration for the new hardware. Hardware only works as well as the tune behind it. The included Stage 2 calibration raises the RPM, airflow, and speed limits so the engine management can take full advantage of the larger throttle body and added boost. Whipple develops and tests its calibrations with the same attention to drivability that you expect from a factory vehicle, so you get the power without giving up smooth street manners.
A simple upgrade path for current Whipple owners. Because the kit builds on your existing Stage 1 system, you only buy the parts that change instead of paying for a complete new supercharger. This is a cost-effective way to move up to Stage 2 performance whenever you are ready for more.
Product Benefits
- Converts a Whipple Stage 1 system to Stage 2
- Up to 875 HP and 650 lb-ft at the flywheel*
- Billet 112mm throttle body for increased airflow
- Billet 3.75" supercharger pulley for approximately 1 psi more boost
- Updated calibration with raised RPM, airflow, and speed limits
- Bolt-on design, no need to replace the supercharger
- Made for 2024-2026 Ford Mustang S650 applications
- Cost-effective upgrade path
- Proven Whipple performance and quality
About Whipple Superchargers: Whipple Superchargers has been building high-performance twin-screw superchargers for decades and is one of the most respected names in forced induction. Known for efficient, reliable power and OEM-level drivability, Whipple engineers each system with precise fitment, quality components, and thorough testing. Steeda is proud to offer Whipple products to Mustang enthusiasts who want proven supercharger performance.
Note: Horsepower and torque figures are manufacturer estimates at the flywheel on 93 octane or higher. Requires an existing Whipple Stage 1 system. Actual results vary by vehicle, fuel, and conditions.
WARNING: California Residents: Cancer and Reproductive Harm;
www.p65warnings.ca.gov
Product Specifications & Vehicle Fitment
Review the product details and confirm compatibility with your vehicle before ordering.
| Specification | Details |
|---|---|
| Installation Difficulty | Tech Recommended |
| Tools Required | Basic Shop Tools |
| Estimated Install Time | (approx.) 20 Hours |
| Vehicle Fitment | 2024, 2025, 2026 |
| Inventory Status Override | None |
| Vehicle Trim | GT, Dark Horse |
