Swapping a 351W into a Fox-body Mustang or other Ford rear-sump chassis demands an oil pan that clears the stroker crank, manages oil under hard acceleration, and seals reliably for the long haul. Moroso's 351W oil pan delivers all three in a fully fabricated steel package finished in Moroso's own black powder coat, available in two configurations: a standard non-billet end seal version and an upgraded billet end seal version for builders who want maximum sealing confidence.

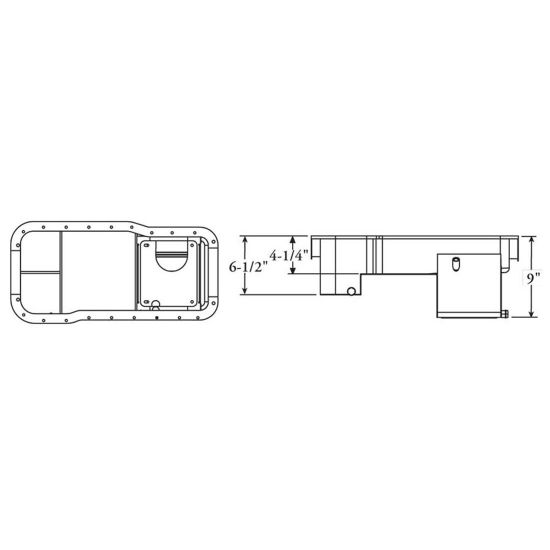

Two configurations to match your build. The non-billet version holds 7 quarts in a 9-inch deep rear sump and clears up to a 3.80-inch stroke with most steel rods. It fits 351W engines with 4-bolt centers only and does not clear 4-bolt front and rear main caps. The billet end seal version shares the same 7-quart, 9-inch deep rear sump geometry but clears a larger 4.0-inch stroke with most steel rods and accommodates all 4-bolt main cap configurations, including front and rear, thanks to fully fabricated steel construction paired with billet end seals.
Oil control built into the design. The non-billet version includes a removable anti-slosh baffle that keeps oil at the pickup under hard cornering or acceleration. The billet end seal version features an anti-climb baffle for the same purpose, holding oil at the pickup when g-forces push fluid rearward or to the sides.
Moroso Powder Coating throughout. Both versions carry a black powder coat finish applied in-house at Moroso, providing corrosion resistance and a clean appearance that holds up under heat cycling in an engine bay.
Product Benefits
- 7-Quart Capacity: Increases oil volume over stock for better thermal management and oil supply.
- 9-Inch Deep Rear Sump: Positions oil at the rear of the pan for compatibility with factory Ford rear-sump applications.
- Stroker Clearance: Non-billet version clears up to 3.80-inch strokes; billet version clears up to 4.0-inch strokes with most steel rods.
- Billet End Seal Option: Fully fabricated steel with billet end seals for improved sealing and 4-bolt main cap compatibility including front and rear.
- Anti-Slosh/Anti-Climb Baffle: Keeps oil at the pickup under lateral and longitudinal load.
- Removable Baffle (Non-Billet): Allows cleaning or reconfiguration without replacing the pan.
- Black Powder Coat Finish: Applied by Moroso for corrosion resistance and a professional appearance.
Note: Fits 1979-up Mustang and other Ford rear-sump applications with a 351W engine. Non-billet version clears 351W with 4-bolt centers only; does NOT clear 351W with 4-bolt front and rear main caps. Billet end seal version clears all 4-bolt main cap configurations including front and rear. Available with or without billet end seals; select the correct option for your main cap configuration and stroke.
About Moroso: Moroso Performance Products has manufactured racing and performance components since 1968, specializing in oil pans, valve covers, ignition systems, and other powertrain accessories. Moroso operates its own in-house powder coating facility and engineering team, supplying components to circle track, drag racing, and street performance builders across multiple platforms.
WARNING: California Residents: Cancer and Reproductive Harm;
www.p65warnings.ca.gov
Product Specifications & Vehicle Fitment
Review the product details and confirm compatibility with your vehicle before ordering.
| Specification | Details |
|---|---|
| Vehicle Fitment | 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995 |
