Track days, autocross events, and hard cornering sessions demand more from an oil pan than the factory unit can deliver. Moroso's road race oil pan for the Ford 289/302 uses a kicked-out rear sump design, aggressive internal baffling, and a 7-quart capacity to keep oil where the engine needs it through sustained lateral loads. Steel construction finished in Moroso's own black powder coat gives the pan durability without the weight penalty of a cast unit.
Four trap doors and dual baffles manage oil under load. The non-billet-seal version uses four trap doors, two fixed baffles, and a removable anti-slosh baffle to control oil movement during hard cornering and braking. The billet end seal version upgrades to a diamond-shaped four trap door assembly with a removable anti-slosh baffle, providing improved oil control across all driving conditions. Both configurations maintain consistent oil pressure where the pump pickup needs it most.

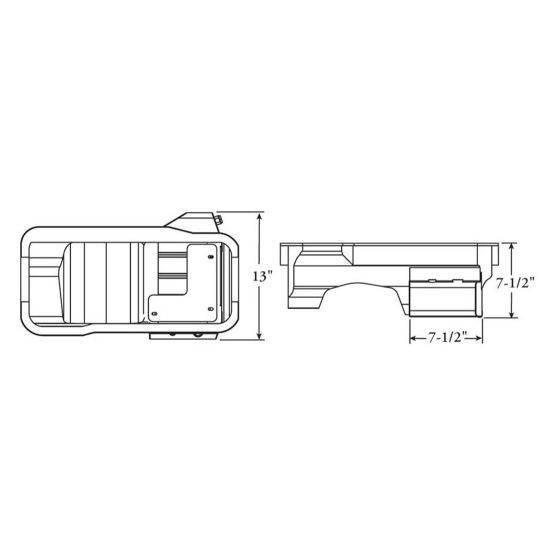

7-1/2-inch depth and 7-quart capacity add critical oil volume. The additional depth and volume compared to the factory pan reduce oil temperature and extend the time before starvation can occur during extended track use. A 1/4" N.P.T. dipstick provision and a 1/2" N.P.T. oil temperature bung are built into the pan, so adding a temperature sender requires no fabrication.
Two end seal configurations fit different block specs. The standard option clears a 302 with 4-bolt centers only and will not clear a 302 with 4-bolt front and rear main caps. The billet end seal option features fully fabricated steel construction with billet end seals for an improved sealing surface, and clears all 4-bolt main cap configurations, including front and rear. Both versions clear a 3.40" stroke with most steel rods.
Product Benefits
- 7-Quart Capacity: Added volume lowers oil temperature and reduces starvation risk during hard use.
- Kicked-Out Rear Sump: Positions the oil supply at the rear for improved pickup coverage under acceleration and braking.
- Road Race Baffling: Trap doors and anti-slosh baffles maintain consistent oil pressure through lateral loads.
- Removable Anti-Slosh Baffle: Allows tuning of internal baffling to suit specific applications or track conditions.
- Built-In Provision Ports: 1/4" N.P.T. dipstick and 1/2" N.P.T. oil temperature bung included on both configurations.
- Billet End Seal Option: Improves sealing and clears all 4-bolt main cap layouts, including front and rear.
- Black Powder Coat Finish: Applied by Moroso in-house for consistent coverage and corrosion resistance.
Note: Fits 1979-up Mustang and other Ford rear sump applications using the 289 or 302 engine. The non-billet end seal version clears 302 blocks with 4-bolt centers only; it will NOT clear a 302 with 4-bolt front and rear main caps. The billet end seal version clears all 4-bolt main cap configurations, including front and rear. Both versions clear a 3.40" stroke with most steel rods. Available with or without billet end seals.
About Moroso: Moroso Performance Products has manufactured racing and high-performance engine components since 1968, specializing in oiling systems, ignition hardware, and chassis accessories. Moroso operates its own powder coating facility and engineering team, allowing in-house development and finishing of products across a wide range of racing and street performance applications.
WARNING: California Residents: Cancer and Reproductive Harm;
www.p65warnings.ca.gov
Product Specifications & Vehicle Fitment
Review the product details and confirm compatibility with your vehicle before ordering.
| Specification | Details |
|---|---|
| Vehicle Fitment | 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995 |
