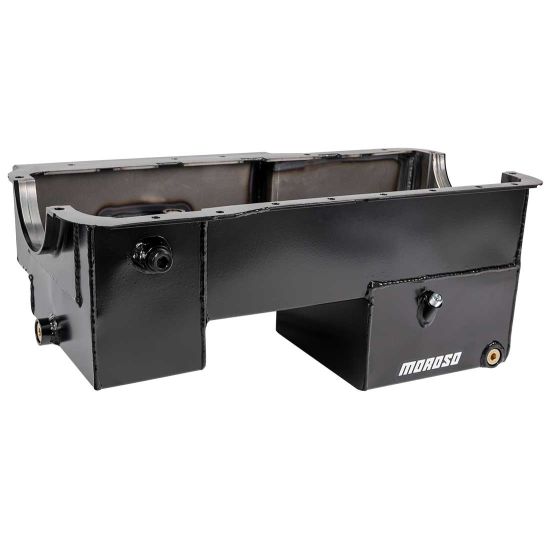

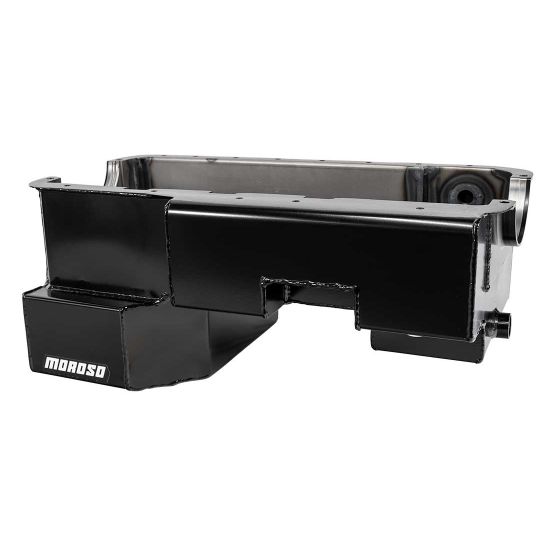

Factory oil pans on the Ford 289/302 small block leave little margin for high-performance use: shallow sumps, minimal baffling, and sealing surfaces that were designed for assembly-line speed rather than longevity. The Moroso Power Pouch oil pan solves all three problems with a fully fabricated steel construction, a 9-inch deep rear sump, and billet aluminum end seals that hold a consistent crush across the full gasket surface.

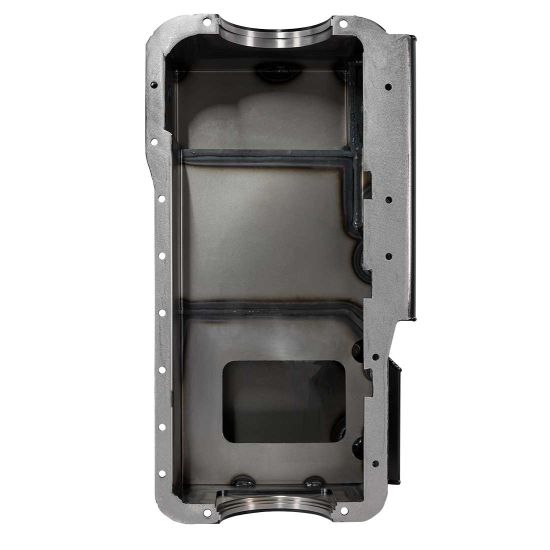

Rear sump kick-out design with genuine oil control. The power kick-out pocket keeps oil available at the pickup under hard acceleration and cornering, while the internal anti-slosh baffle prevents the oil mass from surging away from the pickup during direction changes. Together they maintain consistent oil pressure in conditions where a stock pan would starve the engine.

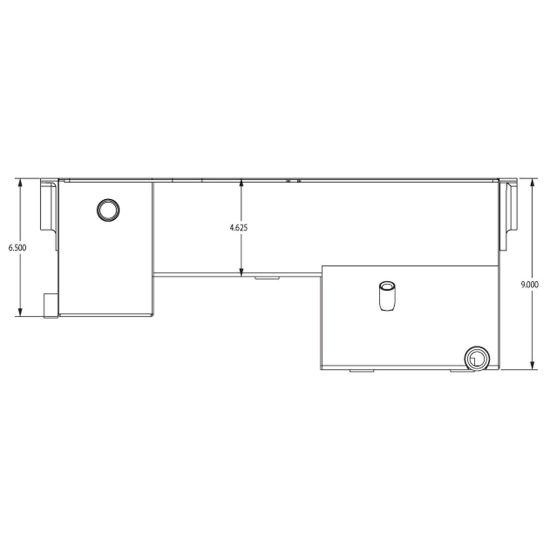

Clearance built into the design. The 9-inch depth clears a 3.40-inch stroke with most steel connecting rods, and the pan clears all 4-bolt main caps including both front and rear positions. That coverage makes it compatible with a wide range of 302 short-block configurations without requiring custom fitment work.
Fabricated steel with Moroso powder coat. The pan body is fully fabricated steel finished in black powder coat through Moroso's in-house powder coating process. Billet end seals replace the factory rubber or cork pieces and provide a flat, repeatable sealing surface that reduces the chance of leaks after initial installation.
Product Benefits
- 9-Inch Deep Rear Sump: Increases oil capacity to 7 quarts and keeps the pickup submerged under load.
- Power Kick-Out: Retains oil near the pickup under hard acceleration to prevent pressure drop.
- Anti-Slosh Baffle: Reduces oil surge during cornering and braking for consistent pickup coverage.
- Billet End Seals: Machined sealing surfaces replace factory soft seals for improved leak resistance.
- Clears 3.40-Inch Stroke: Compatible with most steel rod combinations without modification.
- Clears All 4-Bolt Main Caps: Fits both front and rear 4-bolt configurations on the 289/302 block.
- Black Powder Coat Finish: Applied in-house by Moroso for a durable, corrosion-resistant appearance.
- Wide Fitment: Fits 1979-up Mustang and other Ford rear sump applications.
Note: Fits 1979-up Mustang and other Ford 289/302 rear sump applications. Clears 3.40-inch stroke with most steel connecting rods. Clears all 4-bolt main caps, including front and rear positions. 7-quart wet sump capacity.
About Moroso: Moroso Performance Products has manufactured racing and high-performance components for over six decades, with a catalog that spans oil pans, valve covers, dry sump systems, ignition components, and chassis accessories. Moroso engineers and produces the majority of their products in-house, including their own powder coating operation, allowing tight control over finish quality and dimensional consistency across every part number.
WARNING: California Residents: Cancer and Reproductive Harm;
www.p65warnings.ca.gov
Product Specifications & Vehicle Fitment
Review the product details and confirm compatibility with your vehicle before ordering.
| Specification | Details |
|---|---|
| Vehicle Fitment | 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995 |
