Lomax F-150 Hard Folding Tonneau Cover (2004-2026)

Protect your F-150's bed and cargo from the elements with the Lomax Hard Folding Tonneau Cover, delivering a low-profile tri-fold design in four distinct finish options, complimenting your truck's factory bed caps rather than fighting them visually. This bed cover is built for easy install, operation, and handles heavy use with a 400lb weight rating, while remaining lightweight thanks to its aluminum construction.

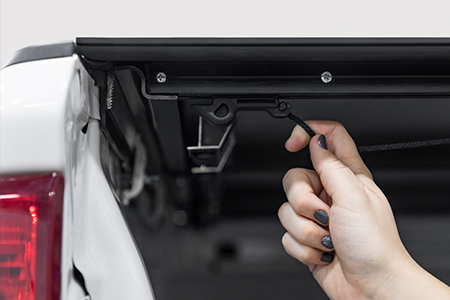

Automatic dual locking system. Pulling a single cord from either side of the cover's rear releases both locks simultaneously. When you unfold each panel, the cover locks automatically at ten points using heavy-duty reinforced nylon components, giving you solid, rattle-free engagement every time you close up the bed.

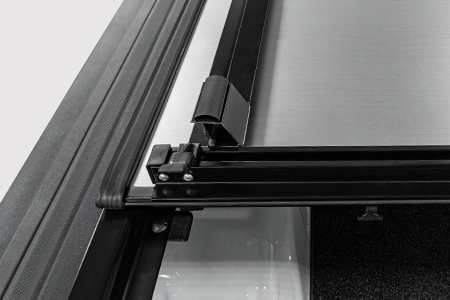

Weathertight construction keeps the elements out. Waterproof hinges and a continuous rubber seal along the full length of both side rails route water away from the bed without gutters or separate drain hardware. The cover overlaps the bed rails completely, closing off gaps that allow wind-driven rain to sneak in.

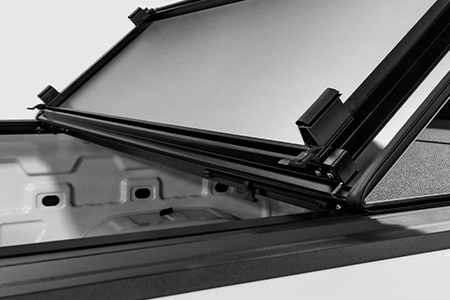

Four finish options to match your build. The exposed top panel is available in urethane aluminum, urethane diamond plate, urethane carbon fiber, or urethane FRP. Each finish is bonded to an extruded aluminum channel substructure that keeps the panels rigid while maintaining a manageable overall weight.

Fast removal when you need full bed access. With the storage clips secured and the cover folded, pull the tab on the front panel, slide it back to disengage the hooks, and lift the entire cover free. Reinstallation reverses the process and locks automatically. No tools, no adjustments. The Tight Bite clamp system fastens to the bed rails without drilling, and eight clamps spread the clamping load for a secure, rattle-free fit.

Product Benefits

• 400 lb. Load Capacity: Extruded aluminum channel substructure supports up to 400 pounds of evenly distributed weight.

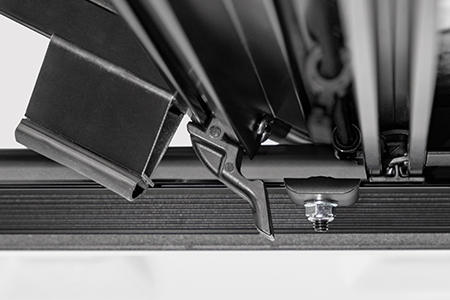

• Ten-Point Auto-Locking: Unfolding each panel engages reinforced nylon locks at ten contact points automatically.
• Dual-Release Cord: One pull from either side releases both rear locks simultaneously for fast, one-person operation.
• Four Finish Choices: Urethane aluminum, diamond plate, carbon fiber, or FRP to match your style.
• Under Half-Inch Profile: Sits less than half an inch above the bed rail for a near-flush, factory appearance.

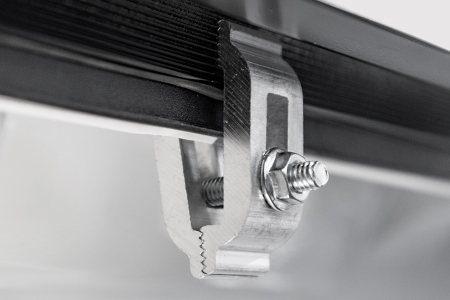

• No-Drill Tight Bite Clamps: Eight clamps grip the bed rail without drilling or permanently modifying your truck.
• Integrated Storage Clips: Retractable clips hold the folded cover rigid, and rubber-padded standoffs keep panels properly spaced.
• Easy On and Off: Complete removal or reinstallation takes seconds with no tools required.
• Made in the USA: Manufactured domestically for quality control throughout production.
• 3-Year Limited Warranty: Backed by a three-year limited warranty from Agri-Cover.

About Lomax: Lomax is a product line from Agri-Cover, a U.S.-based manufacturer specializing in hard folding tonneau covers for pickup trucks. Agri-Cover engineers the Lomax line with an emphasis on strength-to-weight ratio, weather sealing, and tool-free installation and removal, targeting truck owners who need full bed access on demand without sacrificing daily security.
