Floating rotor designs have always had a fundamental flaw: circular rivets that fight thermal expansion rather than accommodate it. The EBC Racing SD-System addresses that flaw directly, replacing the conventional round button with a square-sided rivet that lets the rotor blade move freely under heat, preserving flatness and preventing distortion through the full life of the disc.
Square drive geometry changes how the rotor handles heat. As the 2015-2023 Mustang 5.0L rotor blade heats and cools, it expands and contracts radially. Circular buttons resist that movement, forcing the blade to tighten against the hub and distort sideways, which produces brake pulsation and a spongy pedal. The square-sided button allows unrestricted inward and outward expansion, keeping the rotor blade true and flat regardless of speed or load.
Line contact replaces point contact in the drive direction. Under braking, force transmits through the flat side of each square button across a full line of contact. A conventional circular button transfers that same force through a single point, and over time that point contact allows the rotor blade to work loose relative to the hub. Slackness in the drive direction leads to rotor throw-out and severe vibrations. The SD-System maintains tight tolerances over a far greater service interval, eliminating that failure mode.
Longevity extends well beyond a conventional rotor. Because thermal distortion and drive-direction slackness are both controlled, the primary reasons a floating rotor fails prematurely are removed. EBC Racing estimates an SD-equipped rotor can last five to ten times longer than a comparably used conventional floating disc, with replacement ultimately driven by impact damage or rotor wear limits rather than distortion or loosening.

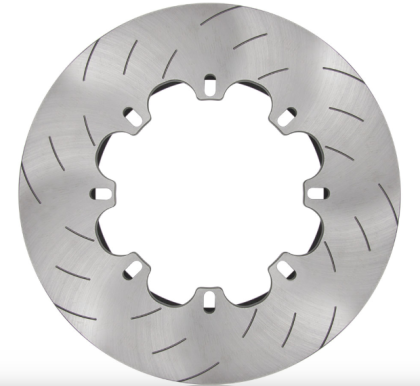

This listing covers the right-side replacement disc ring. The SGDR380X34 D71RH is a direct replacement blade for the front, passenger-side floating rotor assembly on 2015-2023 Mustang 5.0L applications. It replaces the worn rotor ring while retaining the existing hub, keeping replacement costs focused on the component that actually wears.
Product Benefits
- Square Drive SD-System: Square-sided buttons replace circular rivets, allowing unrestrained thermal expansion in both directions.
- Eliminates Rotor Distortion: Prevents the sideways blade distortion that causes pulsation and spongy brake feel.
- Line Contact Drive Force: Transmits braking forces across a full line of contact rather than a point, resisting loosening over time.
- Extended Service Life: Estimated five to ten times the longevity of conventional floating rotors under equivalent use.
- Right-Side Front Fitment: Replacement disc ring fits the front passenger-side floating rotor on 2015-2023 Mustang 5.0L.
- Retains Existing Hub: Replaces only the rotor blade, preserving the hub assembly and reducing replacement cost.
- Prevents Rotor Throw-Out: Maintains close drive-direction tolerances throughout the rotor's life cycle, eliminating blade slackness.
About EBC Racing: EBC Brakes develops friction and rotor products for road, track, and motorsport applications across a wide range of platforms. The EBC Racing division focuses on high-performance and competition-grade components, applying engineering refinements like the SD-System to address the real-world failure modes that conventional brake hardware ignores.
WARNING: California Residents: Cancer and Reproductive Harm;
www.p65warnings.ca.gov
Product Specifications & Vehicle Fitment
Review the product details and confirm compatibility with your vehicle before ordering.
| Specification | Details |
|---|---|
| Vehicle Trim | GT, GT Premium, GT 50 Years Limited Edition, Bullitt, Mach 1 |
| Vehicle Fitment | 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 |
