Conventional floating rotors rely on circular rivets that fight thermal expansion, distort under load, and eventually allow the rotor blade to go slack on the hub. The EBC Racing SD-System takes a fundamentally different approach, replacing those round buttons with square-sided drive pins that let the Focus RS rotor blade move freely in every direction as heat cycles through it.
Square drive geometry solves the core problem of floating rotor design. As a rotor heats up, the blade expands and contracts radially. Circular buttons resist that movement, loading the blade sideways and causing the pulsation or spongy pedal feel that plagues conventional two-piece rotors. The square-sided SD button lets the blade expand and contract without restraint, keeping the rotor perfectly true and flat across the full temperature range.
Line contact replaces point contact in the drive direction. Under hard braking, braking torque transfers from the blade to the hub through the button faces. A circular rivet transfers that force through a single point of contact; wear accumulates there until the blade develops play relative to the hub. The square SD button transfers force along an entire flat face, distributing the load and maintaining tight tolerances far longer. Slackness in the drive direction is one of the primary causes of rotor throw-out and high-speed vibration; the SD-System addresses that failure mode directly.

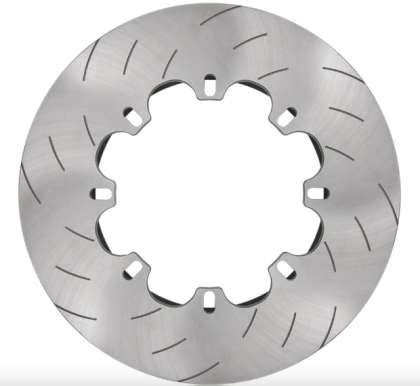

This listing is the left-hand replacement disc ring only. It is the rotor blade itself, sold as a direct replacement for the MK3 Focus RS front floating rotor assembly. The replacement ring fits the existing SD hub without requiring a complete rotor replacement, reducing long-term running costs when the blade eventually reaches wear limits.
Longevity that conventional rotors cannot match. Because distortion failures and drive-direction slackness are effectively eliminated, the primary remaining reasons for replacement are impact damage or reaching the minimum thickness specification after an extended service life. EBC Racing rates SD-equipped rotors to last five to ten times longer than comparable conventional floating rotors built with circular buttons.
Product Benefits
- SD Square Drive System: Square-sided buttons allow unrestricted radial expansion and contraction of the rotor blade under heat cycling.
- Eliminates Brake Pulsation: Rotor blade stays true and flat throughout its service life, preventing the distortion that causes pedal pulsation and spongy feel.
- Line Contact Load Transfer: Braking torque transfers across the full flat face of each button, preventing the point wear and blade slackness of circular-rivet designs.
- Prevents Rotor Throw-Out: Tight drive-direction tolerances are maintained over a far longer service interval, eliminating a key cause of high-speed vibration.
- Replacement Ring Only: Fits the existing SD hub as a direct drop-in, avoiding the cost of a full two-piece rotor replacement.
- Extended Service Life: Rated for five to ten times the lifespan of conventional floating rotors built with circular buttons.
- Correct Fitment: Engineered specifically for the 2016-2018 Ford Focus RS MK3, front axle, left-hand position.
About EBC Racing: EBC Brakes is a specialist brake manufacturer producing friction materials and rotor systems for motorsport and high-performance street use. The EBC Racing division develops competition-grade components, including the SD-System floating rotor platform, for drivers who push brake systems beyond the limits of OEM hardware.
WARNING: California Residents: Cancer and Reproductive Harm;
www.p65warnings.ca.gov
Product Specifications & Vehicle Fitment
Review the product details and confirm compatibility with your vehicle before ordering.
| Specification | Details |
|---|---|
| Vehicle Trim | RS |
| Vehicle Fitment | 2016, 2017, 2018 |
