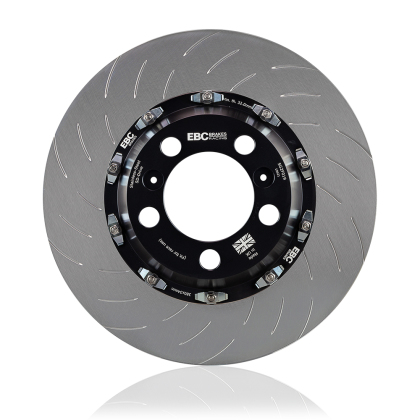

Stock cast iron rotors on the Focus RS were engineered for durability across a broad range of drivers; the EBC Racing SG2FC two-piece floating rotor conversion targets the driver who pushes past that envelope on track days and spirited canyon runs.
G3500 high-grade disc alloy outer rings. Every ring is cast from G3500 alloy, a high-carbon, high-copper metallurgy derived from motorsport applications. Superior thermal conductivity and heat-cycling durability translate directly to longer rotor life and consistent friction performance during repeated hard stops, where standard cast iron begins to crack and craze.
Floating two-piece construction reduces thermal stress. Separating the cast iron ring from the aluminum center hub allows the ring to expand and contract freely under heat, eliminating the thermal distortion that warps one-piece rotors. The center hub, stainless steel bobbins, pressure clips, and all hardware are manufactured at the EBC Racing facility in the UK for tight dimensional control.
48 curved, handed vanes maximize cooling efficiency. The vane geometry is directional: left and right rings rotate so the curved vanes always pull air through in the correct direction. Increased airflow through the rotor pulls heat away from the friction surface faster, keeping pad and rotor temperatures in a more controlled range lap after lap.
Significant unsprung weight reduction. Because the disc sits at the corner of the vehicle and rotates, it contributes both to unsprung mass and rotational inertia, two factors that affect acceleration, braking response, and cornering more than equivalent weight added elsewhere on the car. The two-piece design sheds meaningful mass compared to a same-size solid iron rotor, with measurable improvements in turn-in response and deceleration feel.
Proven in EBC's R90 thermal fatigue testing. EBC's two-piece rotors completed two consecutive back-to-back R90 dynamometer cycles with no cracking and no visible crazing. Most OEM discs show cracking at stop 40 and fail before completing a single R90 cycle. That margin represents more than four times the thermal fatigue resistance of a typical factory rotor.
Precision-ground for flatness. After casting, each ring is balance-checked, metallurgy-checked, and double-disc ground to flatness within microns. That level of accuracy ensures even pad contact from the first bedding cycle and eliminates the thickness variation that causes pedal pulsation.
Product Benefits
- G3500 Disc Alloy: High-carbon, high-copper metallurgy for superior thermal conductivity and heat-cycle durability.
- Fully Floating Design: Ring expands independently of the hub, eliminating heat-induced warping and disc cracking.
- 48 Curved Handed Vanes: Directional vane geometry maximizes airflow and cooling efficiency on both left and right rotors.
- Reduced Unsprung Mass: Two-piece construction cuts rotational inertia for sharper acceleration, braking, and cornering response.
- UK-Made Hardware: Center hub, bobbins, pressure clips, and fasteners produced in-house at EBC's racing facility.
- Double-Disc Ground: Each ring is precision-ground to within microns for consistent pad contact and zero pedal pulsation.
- Direct Front Fitment: Engineered specifically for the 2016-2018 Ford Focus RS front brake position.
- R90 Tested: Completed two full back-to-back R90 thermal fatigue cycles with no cracking or crazing.
About EBC Racing: EBC Brakes Racing develops high-performance brake pads, rotors, and complete brake kits for track and performance street use. The brand manufactures its racing hardware, including hubs, bobbins, and hardware, at its own facility in the UK, applying the same metallurgical development discipline to rotors as it does to pad friction compounds.
WARNING: California Residents: Cancer and Reproductive Harm;
www.p65warnings.ca.gov
Product Specifications & Vehicle Fitment
Review the product details and confirm compatibility with your vehicle before ordering.
| Specification | Details |
|---|---|
| Vehicle Trim | RS |
| Vehicle Fitment | 2016, 2017, 2018 |
