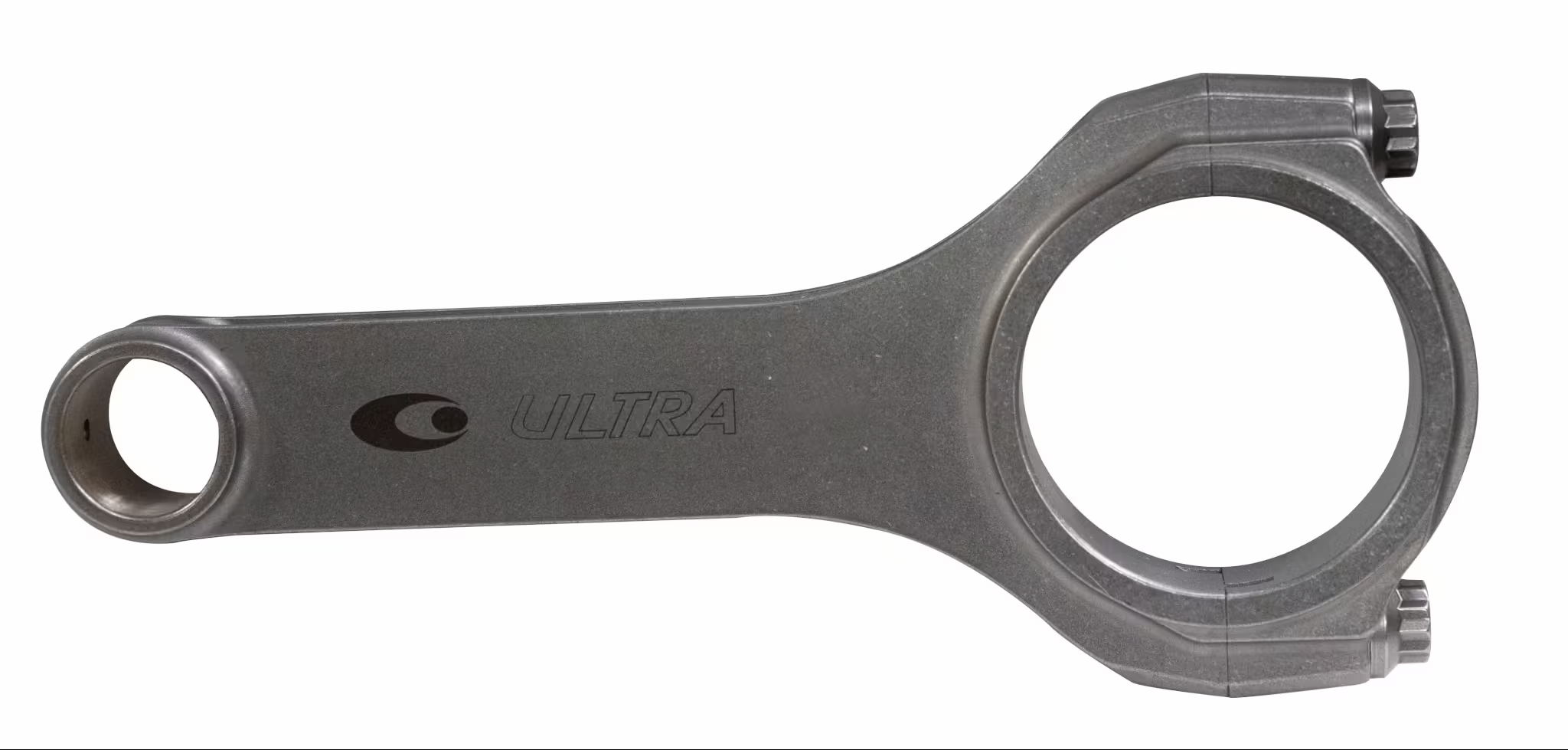

Callies Ford 7.3L Godzilla Ultra H-Beam Connecting Rod 8pc Set

The 7.3L Godzilla platform responds well to additional power, but factory connecting rods become the limiting factor quickly once power targets climb. Callies Ultra H-Beam connecting rods give Godzilla builders a set of eight rods manufactured entirely in the United States from proprietary TimkenSteel, forged in Trenton, Michigan and finish-machined at Callies' Fostoria, Ohio facility. Four dimension configurations cover a range of stroke, journal, and pin combinations to suit different build goals.

TimkenSteel forged to Callies' own specification. The steel billet used in every Ultra H-Beam rod is formulated exclusively for Callies, not sourced from generic bar stock. That material control means consistent grain structure, predictable fatigue life, and tighter dimensional repeatability across the full set of eight rods, which matters when balancing a high-output rotating assembly.

H-Beam geometry built for demanding racing applications. The Ultra H-Beam cross-section distributes load across the rod's full length, resisting both compressive and tensile stress under high cylinder pressure. Each rod goes through a stress relief process and multiple re-torque cycles before leaving the facility, so big-end bores stay round through repeated assembly and disassembly cycles without dimensional drift.

Prep work completed before the rods ship. Pin bushings arrive chamfered and honed to proper high-performance oil clearance. Parting-line edges are generously chamfered to allow clean bearing shell insertion. Bearing locating tab slots are deburred so tabs seat fully without interference. These steps eliminate hours of bench work for the engine builder and reduce the chance of assembly errors.

Custom Age bolt upgrade available. All Ultra rods can be ordered with optional Custom Age bolts for builders who require maximum fastener performance in extreme high-RPM applications.

Product Benefits

• 100% Made in the USA: Forged in Trenton, Michigan; finish-machined in Fostoria, Ohio.
• Proprietary TimkenSteel: Steel formulated to Callies' exact specification for consistent material properties across every rod in the set.
• H-Beam Cross-Section: Handles high compressive and tensile loads generated by forced-induction and high-compression Godzilla builds.
• Dimensional Repeatability: Stress relief and multiple re-torque processing keep big-end bores round through repeated disassembly cycles.
• Pre-Finished Pin Bushings: Chamfered and honed to high-performance oil clearance out of the box.
• Four Size Configurations: Choose from 6.300/2.100/0.866, 6.319/2.239/0.991, 6.319/2.239/OEM, or 6.350/2.100/0.927 (length/rod journal/pin size) to match your rotating assembly.
• Full Set of Eight: Complete eight-rod set for one-stop rotating assembly sourcing.
• Custom Age Bolt Option: Available with -CA suffix for builders who need an upgraded fastener at the rod/cap joint.

Note: Fits the 7.3L Godzilla found in the 2020-2026 Ford F-250 and F-350 Super Duty. Callies Ultra H-Beam rods are designed for demanding race, high RPM N/A, and mild boost applications. Verify dimensions are compatible with your build before ordering.

About Callies: Callies Performance Products designs and manufactures crankshafts, connecting rods, and rotating assembly components from its Fostoria, Ohio facility. Every component Callies produces is manufactured in the United States using domestically sourced materials, with manufacturing history tracked at each step of production for full traceability.
