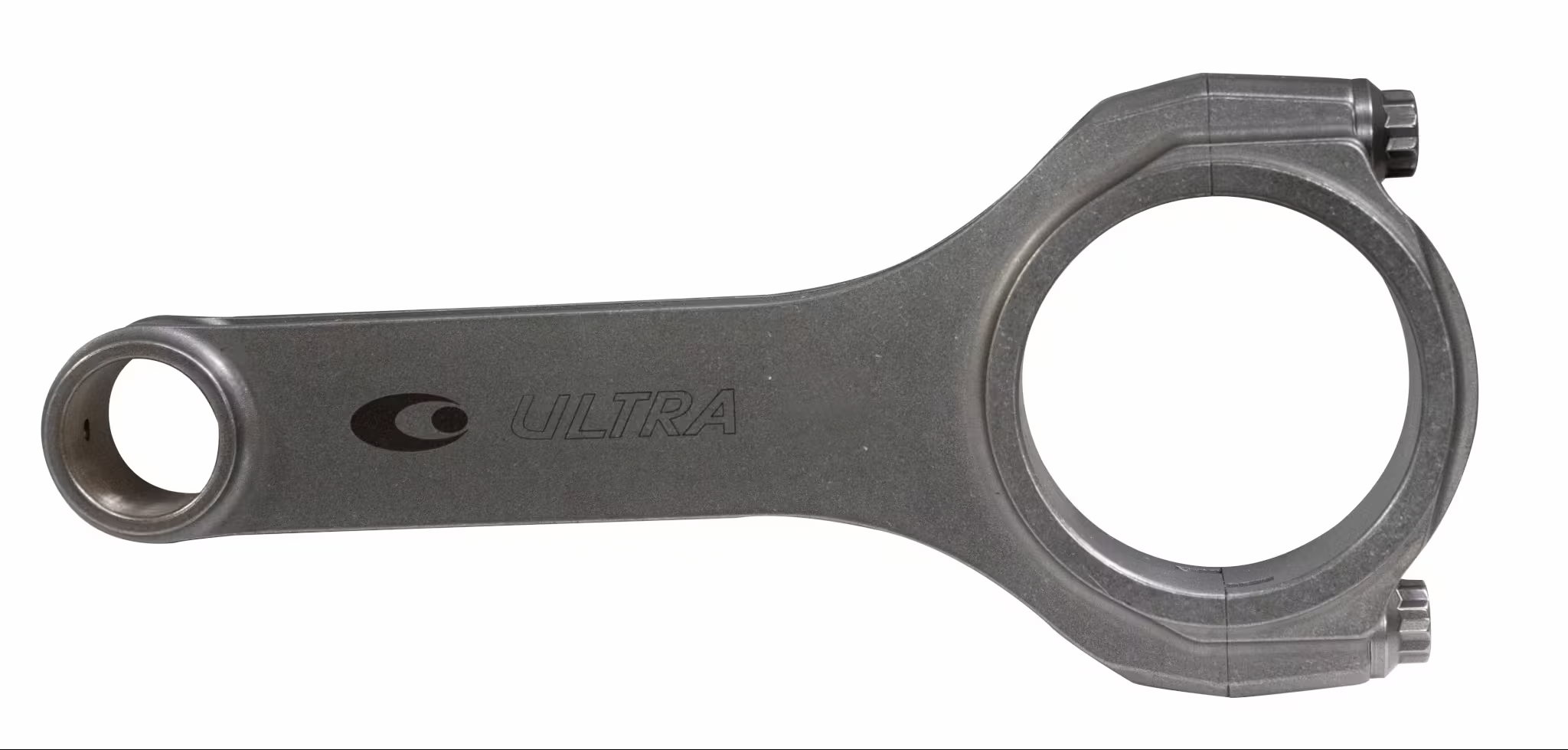

Callies Ford 4.6L Modular/5.0L Coyote Ultra H-Beam Connecting Rod Set - 5.933/2.239

Callies Ultra H-Beam connecting rods bring American-forged precision to the 4.6L Modular and 5.0L Coyote platforms. Each rod in this eight-piece set starts as TimkenSteel bar stock formulated to Callies' proprietary specifications, forged in Trenton, Michigan, and machined entirely at their Fostoria, Ohio facility. The result is a connecting rod with fully traceable manufacturing history at every step, offering engine builders the material and dimensional confidence that high-output builds demand.

H-Beam geometry built for the most demanding racing applications. The Ultra H-Beam profile delivers the cross-sectional rigidity required under sustained high-load, high-RPM conditions. At 5.933 inches in length and a 2.239-inch rod journal diameter, these rods are dimensioned for direct application in stroked and naturally aspirated Coyote and Modular builds without custom machining of the journal or pin end.

Dimensional repeatability through rigorous processing. Big-end bore roundness holds through repeated disassembly and reassembly cycles, thanks to an extended stress-relief process combined with multiple re-torque stages. This burnishes threads and bolt seating surfaces so that residual machining stresses are eliminated before the rods ever reach the engine. Pin bushings arrive chamfered and honed to proper high-performance oil clearance, parting-line edges are generously chamfered for clean bearing shell insertion, and bearing tab slots are deburred so locating tabs seat fully without fitment issues.

Product Benefits

• 100% USA Manufacture: Forged in Trenton, Michigan; machined entirely in Fostoria, Ohio.
• Proprietary TimkenSteel: Material formulated to Callies' exact specifications for consistent grain structure and cleanliness.
• H-Beam Cross-Section: Provides the rigidity needed for high-load racing applications.
• 5.933" Length / 2.239" Rod Journal: Correct dimensions for 4.6L Modular and 5.0L Coyote stroke applications.
• Repeatable Big-End Bore: Stress-relief and re-torque processing keeps bores round through repeated assembly cycles.
• Pre-Finished Pin Bushings: Chamfered and honed to high-performance oil clearance straight out of the box.
• Deburred Bearing Tab Slots: Ensures bearing locating tabs seat fully for trouble-free installation.
• Eight-Piece Set: Complete set covers all cylinders for a single engine build.
• Full Manufacturing Traceability: Every step of production history is meticulously maintained by the Callies team.

Note: Fits Ford 4.6L Modular and Ford 5.0L Coyote engines found in Mustang and F-150 applications. Callies Ultra H-Beam rods are designed for demanding race, high RPM N/A, and mild boost applications. Verify dimensions are compatible with your build before ordering.

About Callies: Callies Performance Products designs and manufactures crankshafts, connecting rods, and rotating assembly components from their Fostoria, Ohio facility. Every Callies component is produced using proprietary steel specifications and in-house machining processes, giving engine builders a fully domestic supply chain and consistent dimensional quality across production runs.
