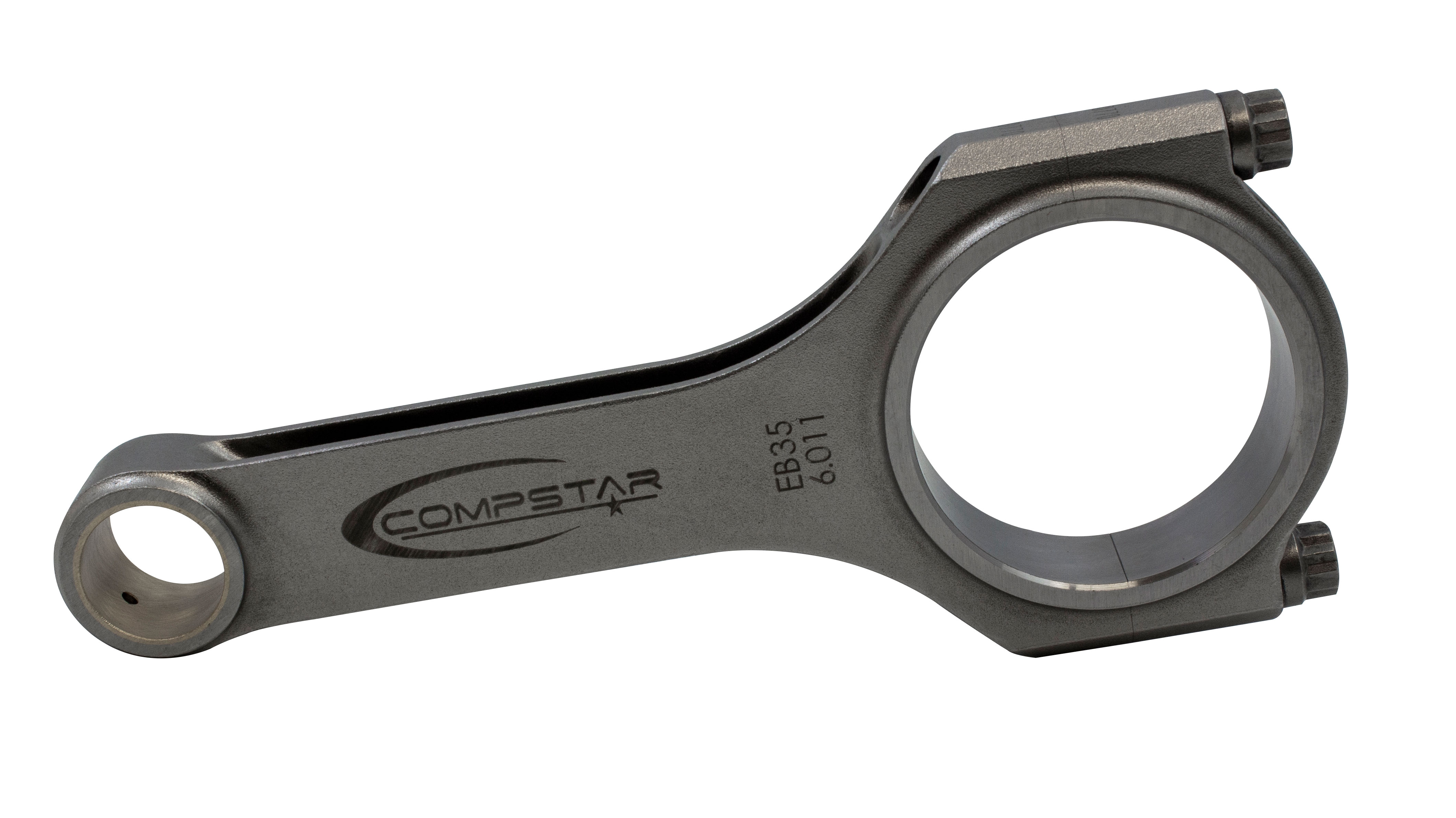

Callies Ford 5.4L Compstar Sport Series H-Beam Connecting Rod 8pc Set w/ Ultra BLT145 Bolts

Callies Compstar Sport Series connecting rods bring professional-grade engineering to the 2007-2012 Mustang GT500's 5.4L supercharged engine. Machined from fine-grained forged 4340 steel in an H-beam configuration, this eight-piece set ships with Ultra BLT145 bolts and arrives ready to drop into your build with minimal additional prep work. Every dimension, from the 6.657-inch length to the 2.239-inch rod journal and 0.866-inch pin bore, is held to tight tolerances through a multi-stage stress relief and re-torque process that protects big-end bore geometry across repeated disassembly cycles.

Dimensional repeatability you can count on. Compstar subjects each rod to an extended stress relief cycle followed by multiple re-torque passes. The process burns in threads and bolt-seat surfaces so the big-end bore stays round on the bench, at first startup, and on every teardown and rebuild after that. Out-of-round big ends are a leading cause of bearing failure; Callies addresses the root cause rather than leaving it to the engine builder to sort out.

Prep work done at the factory. Pin bushings are Ampco 18 bronze, a deformation-resistant material that holds its shape under high wrist-pin loads. Each bushing arrives chamfered and honed to proper high-performance oil clearance. Parting-line edges are chamfered to prevent bearing shell damage during installation, and bearing tab slots are de-burred so the locating tab seats fully the first time.

Stroker clearance and bolt upgrades included as standard. Bolt placement is specifically located to open rotational clearance at the bottom of the bores and at the pan rails, an important detail for stroker builds. Strengthening gussets are added to the cap bolt-seat area where cross-sectional thickness is thinnest, improving both strength and dimensional stability. Contouring above the bolts extends cam clearance and reduces the amount of block clearance required on the cam side.

High strength-to-weight ratio at 680 grams. Callies used 3D solid modeling throughout development to strip mass from non-critical sections without compromising structural integrity. Each rod weighs 680 grams, keeping rotating assembly balance achievable without heavy material removal from counterweights.

Product Benefits

• H-Beam Forged 4340 Steel: Fine-grained material provides a high strength-to-weight ratio for high-output applications.
• Ultra BLT145 Bolts Included: Superior tensile strength and clamping force at the rod-to-cap joint.
• Repeatable Big-End Bore: Multi-stage stress relief and re-torque processing keeps bore geometry round through repeated rebuilds.
• Ampco 18 Pin Bushings: Deformation-resistant bronze material pre-chamfered and honed to high-performance oil clearance.
• Stroker-Ready Clearancing: Bolt placement and cam-side contouring provide additional rotational and cam clearance for stroker builds.
• Factory-Prepped Bearing Seats: De-burred tab slots and chamfered parting lines allow trouble-free bearing shell installation.
• 680-Gram Weight: Optimized mass reduces rotating assembly imbalance without compromising durability.
• 8-Piece Set: Complete set for a full V8 engine build.

Note: Fits 5.4L modular engine found in the 2007-2012 Mustang GT500. Rod journal diameter: 2.239 inches (57mm). Pin diameter: 0.866 inches (22mm). Rod length: 6.657 inches (169mm). Callies Compstar Sport Series H-Beam rods are designed for High RPM N/A or mild boost applications. Verify dimensions are compatible with your build before ordering.

About Callies: Callies Performance Products engineers crankshafts, connecting rods, and rotating assembly components for high-performance and racing applications. The company is recognized in professional engine building circles for dimensional precision, material quality, and production processes that emphasize repeatability across multiple assembly cycles.
