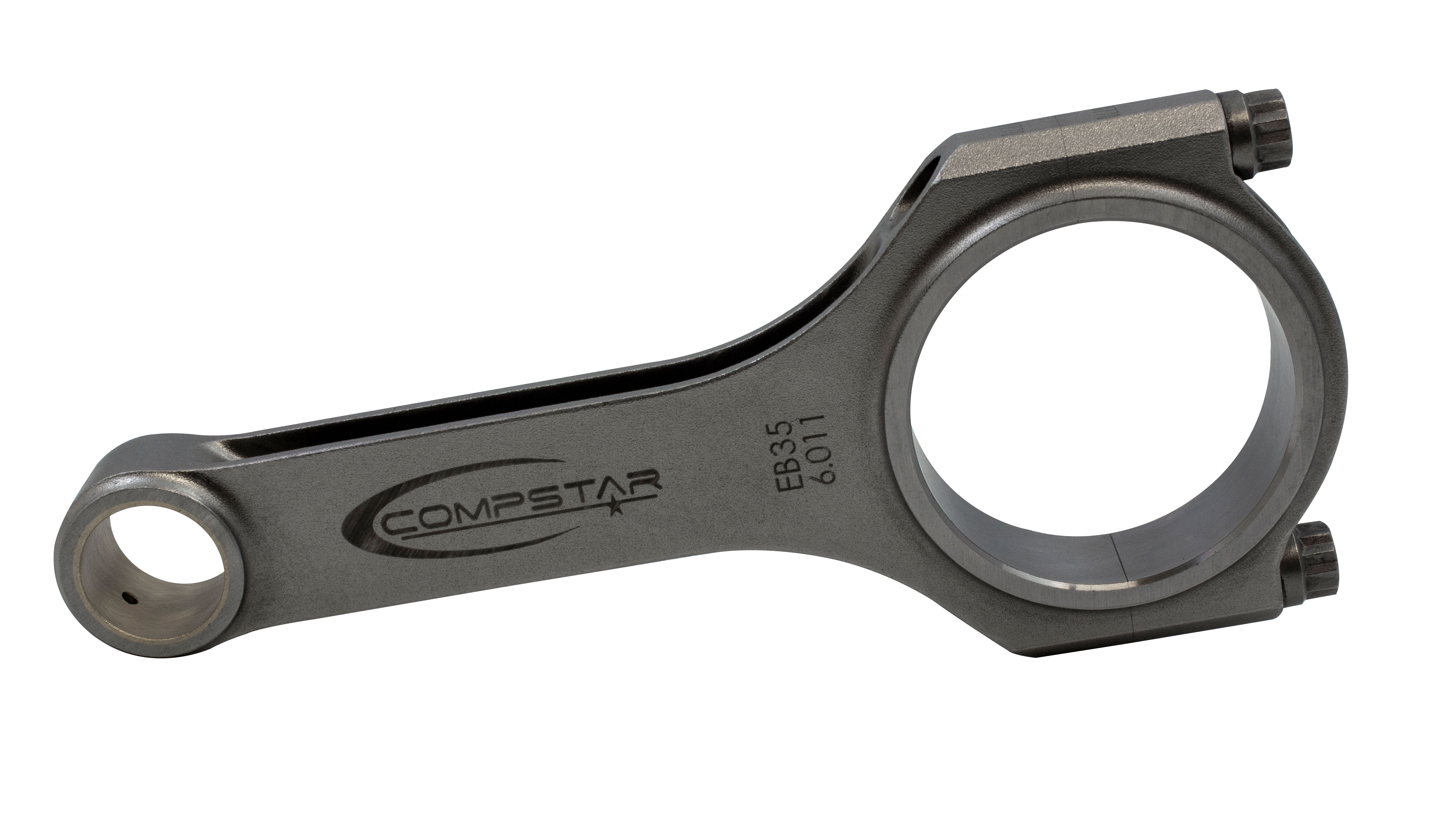

Callies Ford 4.6L Modular/5.0L Coyote Compstar Sport Series H-Beam Connecting Rod 8pc Set w/ Ultra BLT145 Bolts

Callies Compstar Sport Series connecting rods bring professional-grade engineering to the 4.6L Modular and 5.0L Coyote platforms. Machined from fine-grained forged 4340 steel in an H-beam configuration, each rod in this eight-piece set goes through an extensive stress relief and multiple re-torque process that keeps the big-end bores round through repeated disassembly and reassembly cycles. This set ships with Ultra BLT145 bolts for high-output applications, and every prep task that typically eats shop time has already been completed at the factory.

Dimensional repeatability that holds up over time. Many aftermarket rods meet industry tolerances fresh out of the box but go out of round after the first teardown. Callies addresses this with a lengthy stress relief cycle combined with multiple re-torque processing, burnishing threads and bolt spot faces so the big-end bore stays true no matter how many times the engine comes apart.

Factory prep work eliminates bench time. Pin bushings arrive chamfered and honed to proper high-performance oil clearance using deformation-resistant Ampco 18 bronze material. Parting line edges are generously chamfered to prevent bearing shell damage during installation, and bearing locating tab slots are deburred so the bearing tab seats fully without interference.

Stroker clearance built in. Bolt placement is positioned to add rotational clearance at the bottom of the bores and at the pan rails, a detail typically sold as a costly upgrade elsewhere. Contouring above the bolts increases cam clearance on the cam side of the bore.

Strengthened cap geometry where cross-section is thinnest. Gussets added to the bolt spot-face area of the cap increase strength and improve dimensional stability precisely where the cap is most vulnerable to flex under load.

Weight optimized through 3D solid modeling. Callies used solid modeling software to remove mass from every area that did not contribute to strength, resulting in a rod that weighs 635 grams while retaining the structural integrity of the forged 4340 base material.

Product Benefits

• H-Beam Construction: Forged fine-grained 4340 steel for high strength-to-weight ratio.
• 635-Gram Weight: Material removed through 3D modeling without sacrificing strength.
• Big-End Bore Stability: Stress relief and multi-cycle re-torque process maintains roundness through repeated teardowns.
• Ampco 18 Pin Bushings: Deformation-resistant bronze material honed to high-performance oil clearance at the factory.
• Stroker-Ready Bolt Placement: Positioned for additional rotational clearance at the bores and pan rails.
• Cap Gusseting: Adds strength and dimensional stability at the thinnest cross-section of the cap.
• Pre-Chamfered Parting Lines: Bearing shells seat cleanly without risk of damage during installation.
• Complete Eight-Piece Set: One box covers all cylinders for a full engine build.
• Rod Length: 5.933 inches / 151mm with a 2.239-inch / 57mm rod journal and 0.866-inch / 22mm pin.

Note: Fits Ford 4.6L Modular and Ford 5.0L Coyote engines. Callies Compstar Sport Series H-Beam rods are designed for High RPM N/A or mild boost applications. Verify dimensions are compatible with your build before ordering.

About Callies: Callies Performance Products specializes in rotating assembly components for high-performance and racing engines, with a catalog that includes crankshafts, connecting rods, and camshafts engineered for demanding applications. The Compstar line reflects direct feedback from professional engine builders and targets repeatability, ease of preparation, and built-in clearance for stroker configurations.
