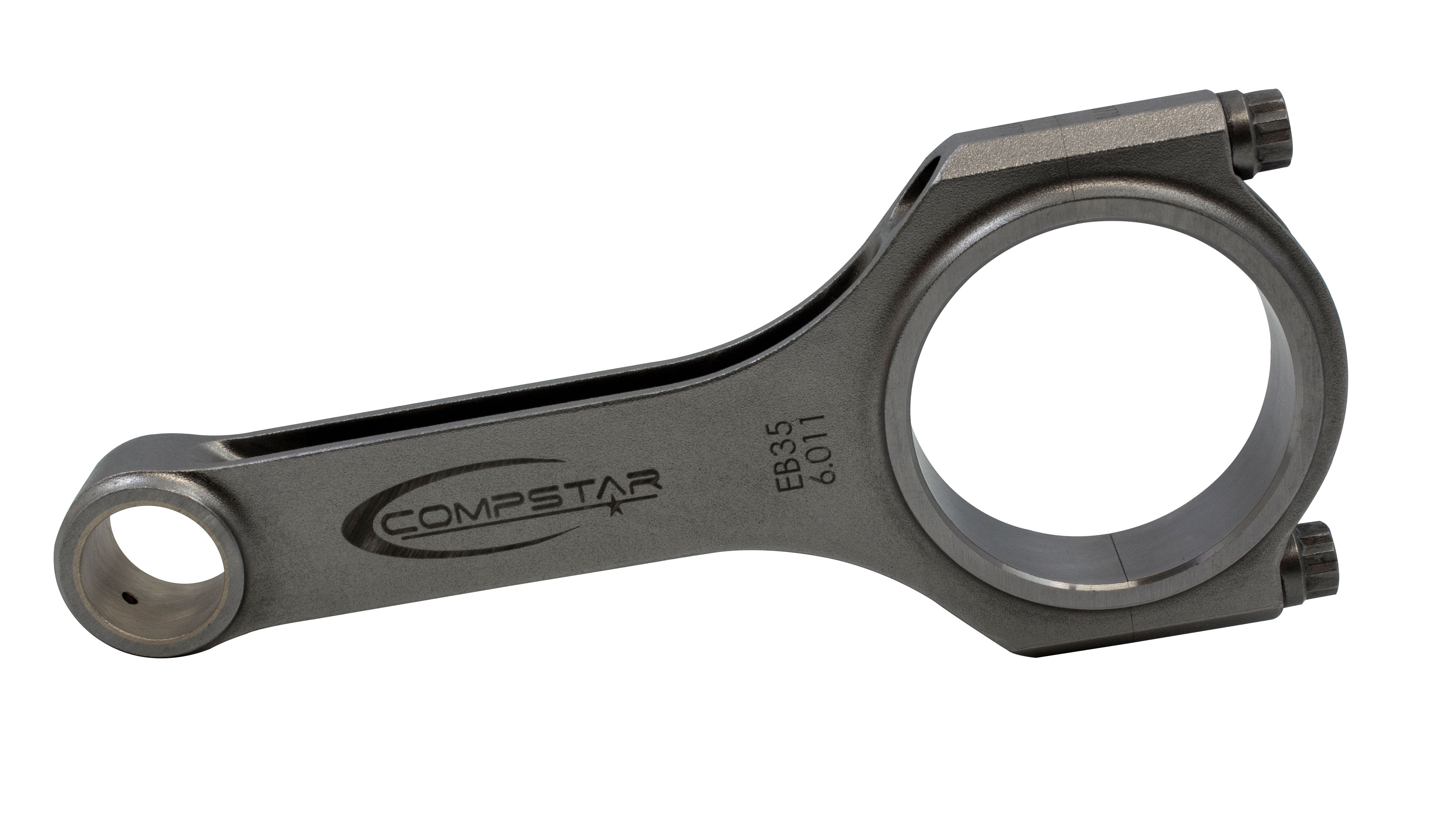

Callies Ford 2.3L EcoBoost Compstar Sport Series H-Beam Connecting Rod 4pc Set

Engine builders working with the 2.3L EcoBoost in Mustang or Focus RS applications need connecting rods that hold dimensional tolerances through repeated assembly cycles, not just on the first build. Callies Compstar Sport Series rods address the most common failure points of aftermarket H-beam rods: big-end bore distortion, time-consuming prep work, and hardware that forces costly upgrades before the engine ever sees the road. Every set ships with ARP 2000 or Custom Age 625 bolts, Ampco 18 wrist pin bushings, and finish work that eliminates most of the tedious bench prep professional builders expect to do themselves.

Big-end bore integrity that holds through repeated assembly. Many rods arrive round but go out of spec the moment a builder disassembles and reassembles them. Callies runs every Compstar rod through a lengthy stress relief process and multiple re-torque cycles, burnishing the threads and bolt spot faces so residual machining stress is released before the rod ships. The result is a big-end bore that stays dimensionally consistent regardless of how many times the cap is pulled and re-torqued, which matters in any build where the engine will see teardowns for inspection or tuning changes.

Machined from fine-grain 4340 steel in an H-beam profile. The 4340 alloy provides the tensile strength and fatigue resistance that high-output forced-induction applications demand. 3D solid modeling allowed Callies engineers to remove mass from low-stress areas while adding strengthening gussets at the bolt spot-face on the cap, where cross-sectional thickness is thinnest. Contouring above the bolt bosses also increases cam clearance and reduces the material removal required at the bottom of the bores on the cam side, making these rods a straightforward fit in stroker configurations.

Prep work done before the rods ship. Pin bushings are chamfered and honed to proper high-performance oil clearance using Ampco 18 material, which resists deformation under high pin loads. Parting line edges are generously chamfered to prevent bearing shell damage during installation, and bearing locating tab slots are deburred so the bearing tab seats fully without additional fitting. Builders spend time assembling engines, not deburring parts.

Bolt options matched to the application. ARP 2000 bolts deliver superior tensile strength and clamping force for the majority of high-output EcoBoost builds. Custom Age 625 bolts are available for the most demanding applications where even greater fatigue strength is required.

Product Benefits

• H-Beam Construction: Machined from fine-grain 4340 steel for high tensile strength and fatigue resistance.
• Dimensional Repeatability: Stress relief and multiple re-torque processing keeps big-end bores round through repeated assembly cycles.
• Ampco 18 Pin Bushings: Deformation-resistant material maintains proper oil clearance under high pin loads.
• Two Bolt Options: Choose ARP 2000 or Custom Age 625 hardware to match the output level of the build.
• Stroker Clearance Built In: Bolt placement and cap contouring provide rotational clearance in stroked applications.
• Ready to Install: Bushings honed, parting lines chamfered, and tab slots deburred at the factory.
• Optimized Strength-to-Weight Ratio: 3D modeling removed mass from low-stress areas while adding gussets where strength is critical.
• Set of Four: Complete connecting rod set for all four cylinders of the 2.3L EcoBoost.

Note: Fits 2.3L EcoBoost found in the 2015-2026 Mustang EcoBoost and Focus RS. Rod length is 149mm, rod journal 52mm, pin diameter 22.5mm. Callies Compstar Sport Series H-Beam rods are designed for High RPM N/A or mild boost applications. Verify dimensions are compatible with your build before ordering.

About Callies: Callies Performance Products engineers crankshafts, connecting rods, and rotating assembly components for high-performance and racing applications. The Compstar product line reflects direct input from professional engine builders, with dimensional tolerances, prep standards, and hardware choices developed to reduce build time and increase long-term reliability in demanding applications.
