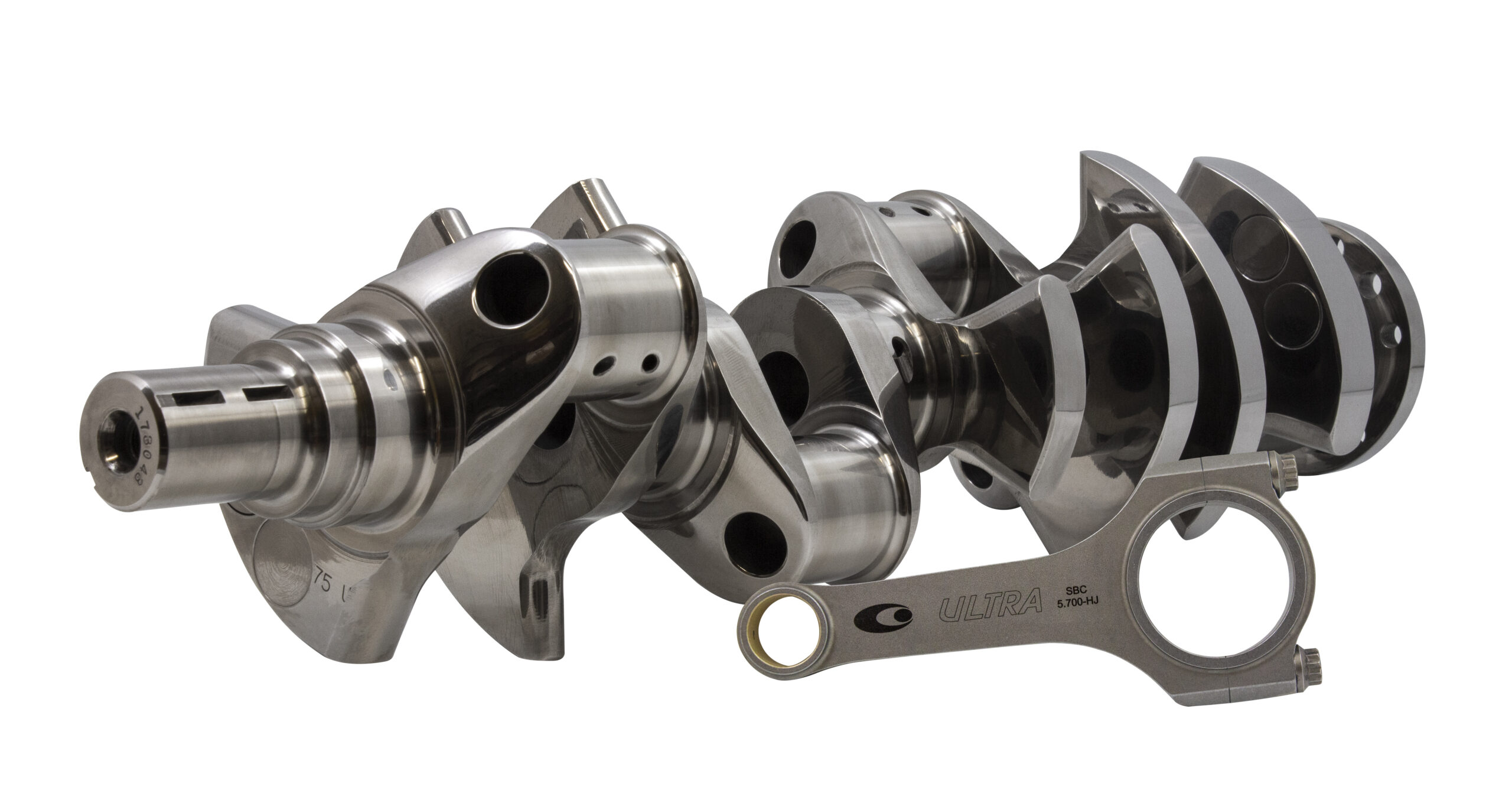

Callies Ford 7.3L Godzilla Ultra Dirt Crankshaft - 3.870/2.657/1.850

Circle track and endurance racing demand a crankshaft that survives sustained high-RPM loads without adding unnecessary reciprocating mass. The Callies Ultra Dirt crankshaft for the 7.3L Godzilla engine answers that demand with forged 4340 steel construction, geometry refined specifically for naturally aspirated competition, and measurable structural improvements over previous-generation Callies cranks. Stroke measures 3.870 inches, main journals 2.657 inches, and rod journals 1.850 inches.

Forged 4340 steel for endurance-grade strength. Callies machines this crankshaft from proprietary 4340 forgings produced in the United States. Forged 4340 carries higher tensile and fatigue strength than cast or billet alternatives at equivalent weight, making it the material of choice for builds that see sustained wide-open-throttle operation.

Structural geometry redesigned from the pin arms out. Compared to the outgoing XB and XL cranks, the Ultra Dirt features more robust pin arms to reduce torsional fatigue at the rod journal radius. Additional material placed around the centerline virtually eliminates crank flex under load, keeping rod journal geometry consistent through the entire power stroke.

Radially narrowed counterweights reduce reciprocating mass without compromise. Rather than the pendulum-cut counterweight style used on earlier designs, Callies narrowed the counterweights radially. The result is a lighter rotating assembly that still maintains the balance integrity required for endurance competition, where bearing survival depends on consistent dynamic balance across thousands of cycles.

Product Benefits

• Forged 4340 Steel Construction: Proprietary American-made forgings deliver high tensile and fatigue strength for sustained racing loads.
• 3.870" Stroke / 2.657" Main / 1.850" Rod: Exact journal dimensions allow precise engine builder specification and rod selection.
• Robust Pin Arms: Increased material at the rod journal radius reduces torsional fatigue compared to previous Callies designs.
• Radially Narrowed Counterweights: Cuts reciprocating mass without the stress concentrations associated with pendulum-cut profiles.
• Anti-Flex Centerline Design: Additional material around the crank centerline maintains journal alignment under high combustion loads.
• Naturally Aspirated Optimized: Geometry and mass distribution tuned for NA circle track and endurance applications.
• Direct Fitment: Engineered specifically for the Ford 7.3L Godzilla engine from the 2020-2026 F-250 and F-350 Super Duty trucks.

Note: Fits 7.3L Godzilla engine. Intended for competition and racing builds. Verify dimensions are compatible with your build before ordering.

About Callies: Callies Performance Products specializes in high-strength crankshafts, connecting rods, and rotating assembly components for racing and high-performance applications. Every Callies crankshaft is machined and finished in the United States, with material sourcing and manufacturing tolerances held to standards developed through decades of motorsport validation across circle track, drag, and endurance disciplines.
